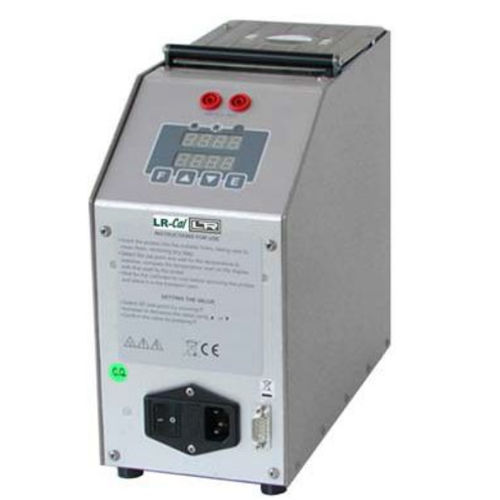

Temperature calibrator PYROS 140-2L

dry-blockportablecompact

This compact and innovative dry block temperature calibrator is especially designed for field applications, robust and able to maintain high accuracy and stability in severe conditions such as offshore rigs and on board of vessels. The self contained unit is very compact, portable and light weight. The innovative forced air ventilation of model LR-Cal PYROS 140-2L greatly reduce the cooling time and prevents the sensors under test from being exposed to excessive heating. With 2 blocks made in copper, each 13 mm diameter Compact and light weight Ramp function Thermostat tests Several different block inserts with different drillings available Optimized for offshore rigs and on board of vessels RS232 interface Temperature display - Accuracy ±0.25°C ±1 Digit Resolution 0.1° (°C oder °F) Stability of regulated temperature - ±0.1°C Heating - from +20°C to +120°C: 20 min. Cooling - from +20°C to -20°C: 17 min. Temperature uniformity - at -20°C, from hole to hole radial ±0.02°C (at 40 mm insertion depth) axial ±0.05°C Metal block depth - 104 mm Metal block diameter - 2 x 13 mm (distance 20 mm) Power consumption - 80 W Interface - no Housing material - Metal (steel) Weight - approx. 4.9 kg Dimension - 130 x 260 x 280 mm
