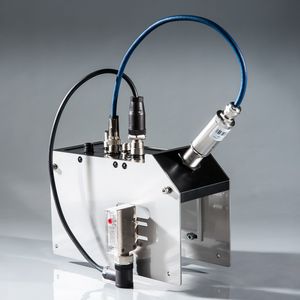

Magnetic exciter unit dsound® USE01

mechanicalfor resonance analysisfor quality control

The dsound® USE01 enables quality testing by an acoustic resonance measurement with magnetic or mechanical excitation in an industrial environment. It is a highly integrated exciter unit that significantly extends the application range of our sound sensors. technical data • line-integratable test unit with non-contact magnetic or mechanical excitation • test rate between 14 und > 20 objects per second, depending on version • highest repeatability / reproducibility of excitations • CAN interface for integration and parameterization in the line • real-time diagnostic and statistical functions • USB interface for parameterization via PC • 2 digital switching outputs, two analog inputs, one synchronization input for direct PLC connection • robust and compact housing (degree of protection IP67) • can be combined with dsound® USS4 und USS5 application fields • for quality and product testing in the food, automotive and mechanical engineering industries for material testing, for EOL testing, excitation unit with quality control, Detection in realtime, Detektion resonance frequency
