Oil rotary union BS-10903

for gas3-passagefor wind turbine

Description

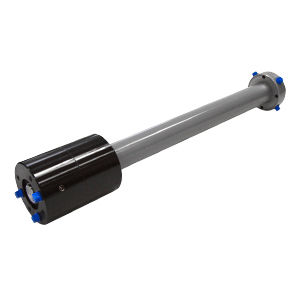

Custom 3-passage rotary union developed for a rotary table used in nuclear equipment testing. Designed with a shaft extension to interface with the customer's existing equipment and to accommodate multiple pressure circuits within a single unit.

Project details

• Industry: Alternative Energy
• Media Type(s): Gas, Oil
• Environment: Indoor
• Material: Carbon / Alloy Steel
• Max. Pressure(s): 10,000 PSI (689 BAR) and 150 PSI (10 BAR)
• Max. Speed: 30 RPM

Dimensions & mechanical

• Number of Passages: 3
• Passage Size(s): .250" (6.4 mm)
• Through Bore: None
• Diameter: 3.437" (87.3 mm)
• Length: 20.750" (527.1 mm)

Technical specifications

• 3 passages
• Passage size: .250" (6.4 mm)
• Diameter: 3.437" (87.3 mm)
• Length: 20.750" (527.1 mm)
• Materials: Carbon / Alloy Steel
• Max pressures: 10,000 PSI (689 BAR) and 150 PSI (10 BAR)
• Max speed: 30 RPM
• Environment: Indoor
