Water rotary union CB-06813

for gas3-passagefor robots

Overview

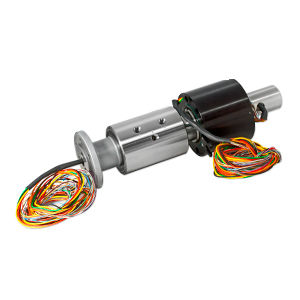

3-passage rotary union designed for a robotic welding cell application. Features a bolt-on adapter to mount an electrical slip ring; the adapter also accepts an encoder to track welding head position.

Primary specifications

• Industry: Alternative Energy
• Media Type(s): Gas, Water
• Environment: Indoor
• Material: Stainless Steel
• Max. Pressure(s): 60 PSI [4 BAR], 100 PSI [7 BAR]
• Max. Speed: 5 RPM

Geometric / passage details

• Number of Passages: 3
• Passage Size(s): 0.125 in (3.2 mm)
• Through Bore: 0.500 in (12.7 mm)
• Diameter: 3.438 in (87.3 mm)
• Length: 12.490 in (317.2 mm)

Related Projects (attributes)

• Industry: Alternative Energy
• Number of Passages: 3
• Passage Size Range (related): 0.125 in - 0.249 in (3.18 mm - 6.32 mm)
• Rotation Speed (RPM) (related): 0 - 24 RPM
• Pressure Range (related): 0 - 199 PSI (0 - 14 BAR)
• Media (related): Gas, Water
• Material (related): Stainless Steel
• Thru Bore (related): Under 1 in (25.4 mm)
• Environment (related): Indoor
• Options (related): Slip Ring

Technical characteristics / specifications

• Model / Project ID: CB-06813
• Type: 3-passage rotary joint (rotary union)
• Application: Robotic welding cell
• Adapter: Bolt-on adapter to mount electrical slip ring; adapter accepts encoder for welding head position tracking
• Materials: Stainless steel construction
• Max Pressure Ratings: 60 PSI (4 BAR) and 100 PSI (7 BAR) depending on passage/application
• Max Speed: 5 RPM (operational)
• Passage size: 0.125 in (3.2 mm)
• Through bore: 0.500 in (12.7 mm)
• Outer diameter: 3.438 in (87.3 mm)
• Overall length: 12.490 in (317.2 mm)
