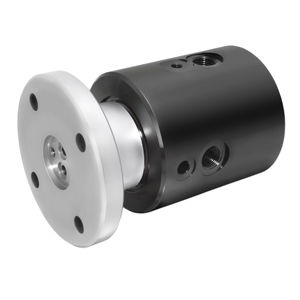

Oil rotary union OF-0660202

2-passagehigh-pressurefor the steel industry

Overview
2-passage rotary union designed to supply grease to a hot rolling coiler mandrel application. Features a close-clearance, non-contacting seal optimized for high-speed and high-pressure service. The unit is engineered to integrate directly with an additional hydraulic rotary union for combined lubrication and hydraulic functions.

Project Data

• Industry: Metal Production
• Media Type(s): Other
• Environment: Indoor
• Material: Carbon / Alloy Steel
• Max. Pressure(s): 5,800 PSI [400 BAR]
• Max. Speed: 600 RPM

Configuration

• Number of Passages: 2
• Passage Size(s): 0.250" [6.4 mm]
• Through Bore: None
• Diameter: 4.252" [108 mm]
• Length: 5.820" [147.8 mm]

Related Projects (summary)

• Related Industry: Metal Production
• # of Passages: 2 Passages
• Passage Size Range (related): 0.250" - 0.374" [6.35 mm - 9.50 mm]
• Rotation Speed (RPM): 100 RPM & Over (category)
• Pressure Range (PSI): 200 - 6,499 PSI [14 - 448 BAR] (category)

Specifications

• Model / Project: OF-0660202
• Type: 2-passage rotary union for grease supply
• Application: Hot rolling coiler mandrel
• Seal Type: Close-clearance, non-contacting seal optimized for high speed and high pressure
• Integrated Design: Integrates directly with an additional hydraulic rotary union
• Materials: Carbon / Alloy Steel construction
• Maximum Pressure: 5,800 PSI (400 BAR)
• Maximum Speed: 600 RPM
• Passage Size: 0.250" (6.4 mm)
• Diameter: 4.252" (108 mm)
• Length: 5.820" (147.8 mm)
• Through Bore: None
