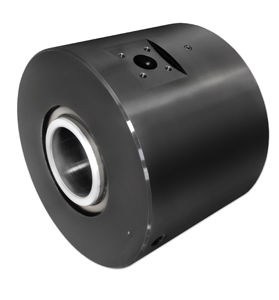

Oil rotary union OF-0650602

2-passagehydraulicindustrial

Overview
2-passage rotary union designed to supply hydraulic service for expanding and collapsing a hot rolling coiler mandrel. Features a close-clearance, non-contacting seal for high-speed and high-pressure operation and a custom thru-bore for direct integration into the cylinder shaft.

Key Features

• Industry: Metal Production
• Media Type(s): Oil
• Environment: Indoor
• Material: Carbon / Alloy Steel
• Close-clearance, non-contacting seal for high speed and high pressure service
• Custom thru-bore configured for integration into the cylinder shaft
• Designed to supply hydraulic service for expanding/collapsing a hot rolling coiler mandrel

Dimensions & Passages

• Number of Passages: 2
• Passage Size(s): 1.000 in [25.4 mm]
• Through Bore: 2.362 in [60 mm]
• Diameter: 19.685 in [500 mm]
• Length: 15.160 in [385.1 mm]
• Max. Pressure(s): 2,610 PSI [180 BAR]
• Max. Speed: 600 RPM

Technical Specifications

• Industry: Metal Production
• Media: Oil
• Environment: Indoor
• Material: Carbon / Alloy Steel
• Number of Passages: 2
• Passage Size(s): 1.000 in [25.4 mm]
• Through Bore: 2.362 in [60 mm]
• Diameter: 19.685 in [500 mm]
• Length: 15.160 in [385.1 mm]
• Maximum Pressure: 2,610 PSI [180 BAR]
• Maximum Speed: 600 RPM
• Seal Type: Close-clearance, non-contacting seal for high speed/high pressure service
• Application: Hydraulic service for expanding/collapsing a hot rolling coiler mandrel
