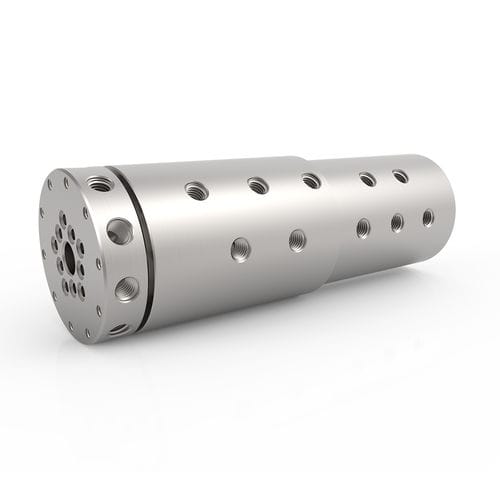

Water rotary union GPS 10

for vacuumfor airfor chemicals

Description
The GPS Series 10-passage rotary unions provide ten independent flow passages for simultaneous transfer of different media. They employ specialized sealing technology for vacuum and bidirectional pressure service. Stainless steel construction suits hydraulic, pneumatic, coolant, water and other corrosive media; carbon steel variants are available for non-corrosive applications. GPS 10-passage models ship standard with NPT threaded side connections on shaft and housing. Optional axial O-ring face seal glands are available and must be specified at time of order. The GPS Series is designed to integrate directly with electrical slip rings to combine fluid transfer with electrical power, signal and data transmission.

Key features

• 10 independent passages for simultaneous transfer of multiple media
• Specialized sealing technology for vacuum and bidirectional pressure service
• Standard materials: Stainless steel housing and shaft; carbon steel available for non-corrosive applications
• Standard connection: NPT threaded side connections on shaft and housing
• Optional axial O-ring face seal glands (must be specified at time of order)
• Designed for integration with electrical slip rings (fluid + electrical integration)
• Suitable media: Air/Gas, Chemical, Coolant, DI/Tap Water, Oil/Hydraulic, Water/Glycol (some media/temperatures may require alternative seal materials)

Configurations (examples)
Part # | Connection | Passage Size | Diameter | Length | Through Bore | Min. Torque
GPS-201-10 | 1/4"-18 NPT | 0.250" [6.35 mm] | 3.687" [93.65 mm] | 10.000" [254.001 mm] | 0.750" [19.05 mm] | 14.7 ft-lbs [19.93 Nm]
GPS-301-10 | 3/8"-18 NPT | 0.375" [9.525 mm] | 3.937" [100 mm] | 13.620" [345.949 mm] | 0.750" [19.05 mm] | 23.3 ft-lbs [31.59 Nm]

Pressure / Speed / Connection summary (series options)
Max. Pressure | Series available for that pressure
200 PSI [15 BAR] | SPS, LT, SE, GP, GPS, SCS, HVH, HPS
600 PSI [40 BAR] | SPS, LT, SE, GP, GPS, HVH, HPS
5,000 PSI [345 BAR] | SE, GP, GPS, HVH, HPS
7,500 PSI [515 BAR] | SE, GP, GPS, HPS
20,000 PSI [1,375 BAR] | HPS

Max. Speed | Series available
20 RPM | SPS, LT, SE, GP, GPS, SCS, HVH, HPS
50 RPM | SPS, LT, SE, GP, GPS, SCS, HPS
75 RPM | SPS, LT, SE, GP, GPS, SCS
300 RPM | SPS, LT, SE, GP, GPS, SCS
500 RPM | SPS, LT, GP, GPS, SCS

Connection type summary
Common connection types and applicable series: NPT (standard for GPS, GP, SPS, LT), BSPP, BSPT, SAE-ORB, ASME-BPE and medium-pressure/custom connections are available depending on series and application. Axial O-ring face seal glands are an optional shaft connection (must be specified at time of order).

Notes / Application guidance

• Chemical or water-based media may require alternative sealing materials.
• Applications above 220° F (105° C) require alternate seal materials.
• Operational life depends on rotational speed and duty cycle; required torque may be higher for media other than Oil/Hydraulic or when dry running.
• Consult the factory for applications near maximum speed, continuous high-speed duty, or unusual media/temperature combinations.

Technical specifications

• Series: GPS Series (10-passage)
• Maximum Pressure: 7,500 PSI [515 BAR] (series maximum; other pressure options available per series)
• Maximum Speed: 500 RPM (series option; other speed options exist per series)
• Maximum Vacuum: 30 in HG
• Temperature Range: 0° F to 220° F [-18° C to 105° C] (applications outside this range require alternate seal materials)
• Housing Material: Stainless Steel (carbon steel models available for non-corrosive applications)
• Shaft Material/Finish: Stainless Steel (TDC)
• Standard Connection Type: NPT threaded side connections on shaft and housing
• Shaft Connection Options: Radial NPT (standard); optional axial O-ring face seal connections (specify when ordering); threaded interface mounting holes
• Passages: 10 independent flow passages
• Suitable Media: Air/Gas, Chemical, Coolant, DI/Tap Water, Oil/Hydraulic, Water/Glycol (some media/temperatures require alternative seal materials)
• Example configuration dimensional & torque data: see configurations examples (e.g., GPS-201-10 and GPS-301-10)
