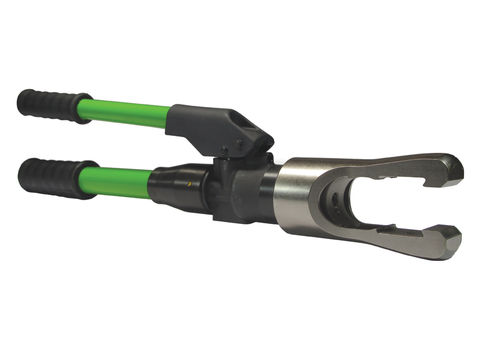

Hydraulic crimping tool MPL130Umanualfor cable lugswith interchangeable dies
Add to favorites
Compare this product
Characteristics
- Operation
- manual, hydraulic
- Applications
- for cable lugs
- Other characteristics
- with interchangeable dies
- Crimp profile
Max.: 400 mm²
(0.62 in²)Min.: 10 mm²
(0.016 in²)
Description
Force, stroke and capacities identical to tool XH130 and battery-operated tool BPP130U.
HEAD PER HN 68-S-90 (EDF specification)
For underground lines (bimetallic lugs & sleeves).
MAX. DIAMETER 34 mm
In the head for large cross-sections.
MECHANICAL STOP
To stop the stroke.
2-SPEED HYDRAULIC SYSTEM
Less pumping action required.
STROKE - 26 mm
MAX. DIAMETER - 34 mm
FORCE - 130 kN
DIMENSIONS (mm) - 560 x 80 x 165
WEIGHT - 4.850 kg
> Common interchangeable indentor and
opening die sets for H130, XH130 &
BPP130U tools.
