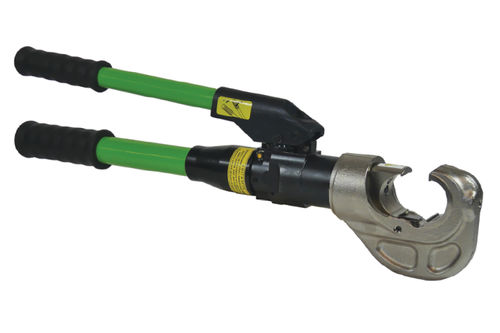

Manual crimping tool MPL130 Neofor cable lugsfor connectorswith interchangeable dies
Add to favorites
Compare this product
Characteristics
- Operation
- manual
- Applications
- for cable lugs, for connectors
- Other characteristics
- with interchangeable dies
- Crimp profile
Min.: 6 mm²
(0.009 in²)Max.: 400 mm²
(0.62 in²)
Description
Force, stroke and capacities identical to tool XC130-xx and battery-operated tools BPE130 & BPP130x.
2-SPEED HYDRAULIC SYSTEM
Less pumping action required.
CRIMPING OF OVERHEAD LINES
Tool particularly well-suited for this application
FITTED WITH A MECHANICAL STOP
Piston stops at the end of the stroke
STROKE - 26 mm(-l) - 38 mm(-3) - 44 mm (-4)
FORCE - 130 kN - 130 kN - 130 kN
DIMENSIONS (mm) - 565 x 70 x 160 - 590 x 70 x 160 - 415x75x310
WEIGHT - 5.30 kg - 5.770 kg - 7.280 kg
Catalogs
No catalogs are available for this product.
See all of DUBUIS‘s catalogsOther DUBUIS products
MANUAL CRIMPING PRESS
