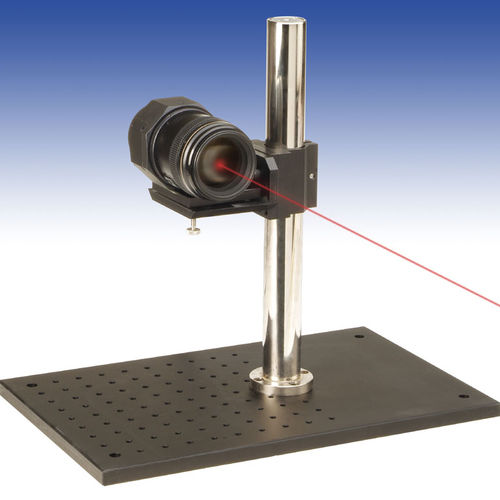

Laser beam aligner AngleMeter LA

Monitoring minute angular deviations on a wide aperture The system measures laser beam angular deviations with respect to the housing with µRad resolution, by monitoring the beam in two orthogonal directions. Power fluctuations are also recorded, and a strip chart display of beam versus time is offered. The system measures CW beams, and offers portable, fast and accurate beam alignment solution. We offer either an Analog version with a bandwidth of up 60 KHz, or a USB version with two parallel modes of operation. The digital version runs on any Notebook computer with Windows 7/8/10 OS (32 & 64 bit). Multiple devices control via USB port is possible. Data streaming via TCP/IP communication protocol or RS232 . ActiveX software for integration in customer's application program is available. A complete system based on a sensor head with 3m long attached cable, an electronics box with USB2.0 cable, software on CD disk, carrying case.
