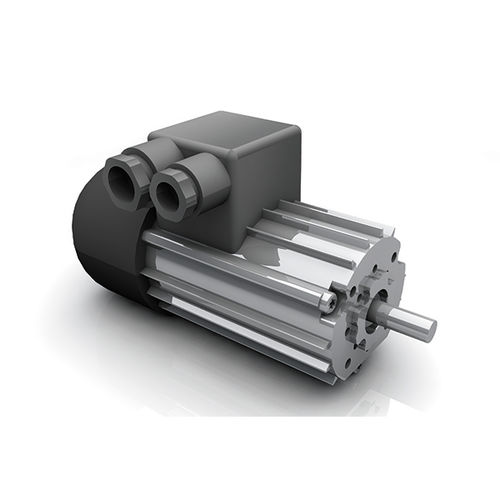

AC motor KD 52.0x60-2
three-phase220 Vrugged

AC motor
AC motor
Add to favorites
Compare this product


Characteristics

AC/DC
AC, three-phase
Voltage
220 V
Protection class
rugged
Configuration
with start capacitor
Number of poles
2-pole
Power

25 W
(0.034 hp)

Torque

0.09 Nm
(0.0664 ft.lb)

Rotational speed

2,600 rpm
(16,336.28 rad.min-1)

Description

Rugged design Maintenance free during lifetime Ball-bearings and surface cooling by built-in blower for maximum lifetime Three-phase, two-pole design Reversible rotational direction Available in different lengths Can be combined with gearboxes IP 54 protected when flange-mounted Insulation material according to VDE 0530, corresponds to insulation class F Surface protected by aluminium housing End shields made of die-cast aluminium
