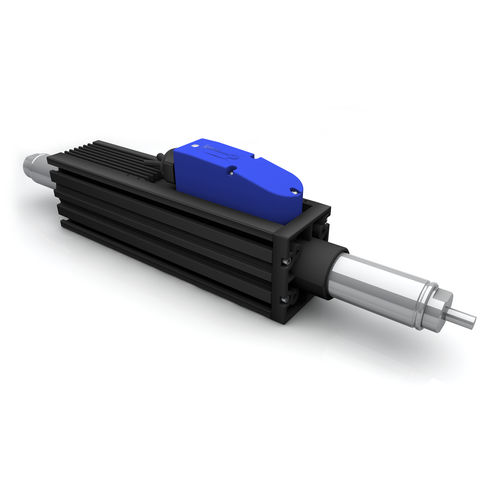

Electric actuator XTA 38 linearfor materials handlingindustrial
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- linear
- Applications
- for materials handling, industrial
- Stroke
Max.: 318 mm
(12.52 in)Min.: 33 mm
(1.299 in)- Force
Max.: 1,860 N
Min.: 137 N
- Speed
5.3 m/s
(17.39 ft/s)
Description
THE ST SERIES IS NOTABLE FOR:
» Tubular linear motor
» 3 phase technology
» Actuator, components and module
» High power density
» High efficiency
» Highly dynamic acceleration
» Very long life-time
» Freedom of maintenance
» Robust design
» Smooth controllability
» High-quality rare-earth magnets
» Integrated hall sensors for positioning
» Mounting options for DIN/ISO 6431
LINEAR MOTORS, SERIES ST
Continuous force : 8,6-615 N
Peak force: up to 3690 N
Speed : up to 9,3 m/s
Protection class : > IP 65
Repeatability :< 20 μm
