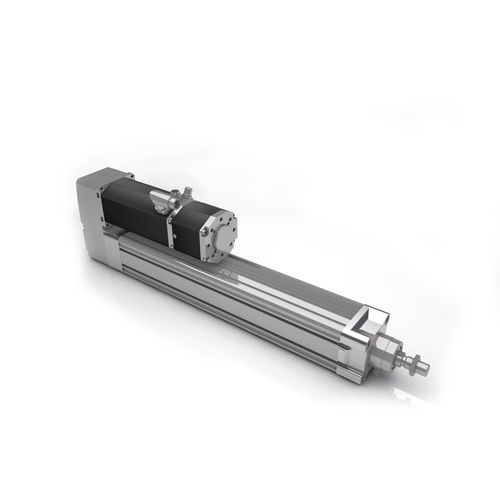

Linear actuator CASM-63electricball screwDC
Add to favorites
Compare this product
Characteristics
- Movement
- linear
- Type
- electric
- Technology
- ball screw
- Motor
- DC
- Other characteristics
- compact, motorized
- Stroke
Min.: 50 mm
(1.969 in)Max.: 800 mm
(31.496 in)- Force
Min.: 0 N
Max.: 5,400 N
- Torque
1.16 Nm
(0.856 ft.lb)- Speed
Min.: 0 m/s
(0 ft/s)Max.: 1 m/s
(3.28 ft/s)
Description
The CASM series is notable for:
» Twist protected thrust rod
» In-Line and parallel motor version
» Compact design
» Maintenance free
» Lead and ball screw version
» Easy position configuration (PI Motor)
» Several Bus-Interfaces available
» Very long lifetime
LINEAR ACTUATOR, SERIES CASM
Continuous stall forces: up to 5400 N*
Peak forces: up to 5400 N*
Stroke lengths:50 – 800 mm
Speed: up to 1 m/s
Acceleration: up to 6 m/s²
Repeatability: +/- 0,01 mm
Supply voltage:12 – 48 VDC
