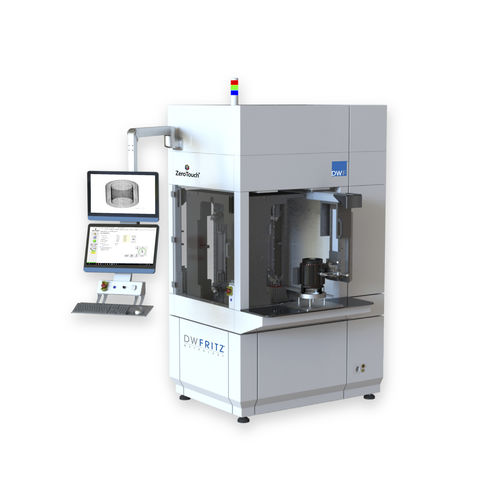

Geometry measuring system ZeroTouch® ZTR

diameterpositionangle

ZeroTouch® ZTR is a precise, high-speed metrology and inspection system for processing rotors and stators faster than traditional metrology methods. A robust, production-ready, near-line or in-line, non-contact metrology platform, ZeroTouch® ZTR captures and analyzes millions of data points in 30 seconds. Features & Benefits • High-speed inspection and analysis: 30 seconds vs 30+ minutes by other tactile systems • Captures dense precision point cloud data for rapid feature and dimensional analysis • Scans different materials and constructs, including hairpin windings, insulators, and laminate stacks • Capable of inspecting insulating enamel or impregnating resin coatings on hairpins • Developer coating not required to capture shiny surfaces • Capable of inspecting single laminate, stacked laminate core, and final assembly with hairpin (stator) or shaft (rotor) • System functions in manual or fully automatic mode • Allows for 100% inspection of parts leading to process and quality improvements • Inspects both rotors and stators in the same system • Supports a wide range of dimensions and weights • Small footprint allows for optimal usage of production space
