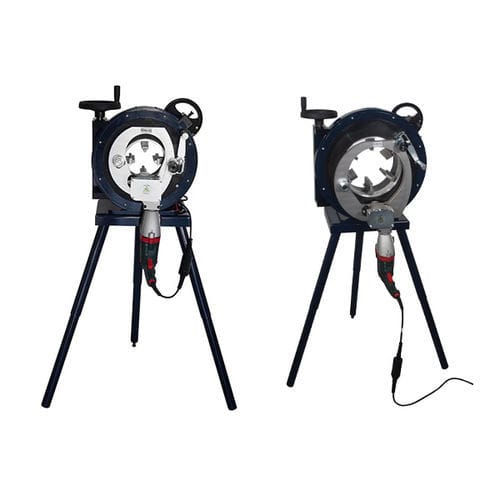

Electric pipe saw RG3505 series

orbital

perfect cut for orbital welding Precision Cutting Optimal Welding Results Variable Speed Control Powerful Performance Before pipe segments are joined together by means of orbital welding, the individual parts naturally first need to be cut to size. A professional pipe saw from DWT ensures that the cut surfaces fit together or each other as precisely as possible, ensuring an optimum result in the subsequent welding process. Our orbital pipe saws have a continuously variable electric drive. The speed range is from 20 to 420 rpm, and the torque ranges from 120 to 330 Nm. In terms of squareness, they offer a cutting accuracy that deviates by less than 0.25 mm from the intended measurement. The rotary crank, which comes as standard, further optimizes the cutting quality and also extends the service life of the saw blades. HIGHEST CUTTING ACCURACY Regarding perpendicularity, the cut's accuracy deviates less than 0.25 millimeters from the target REDUCED POST-PROCESSING NEEDS The precision of the cut typically means that there's less need for deburring or further finishing
