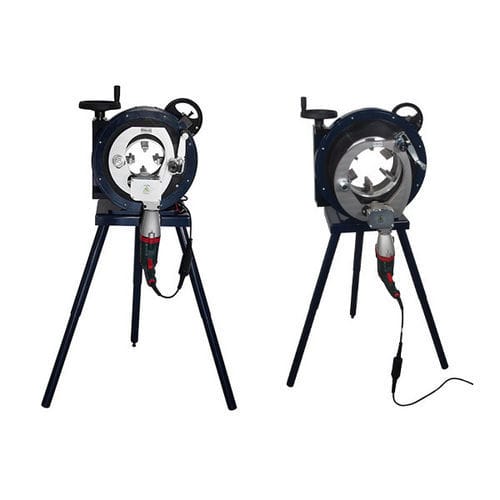

Orbital pipe cutting and beveling machine

motorized

Product description
Before pipe segments are joined by orbital welding, the individual parts must be cut to size. A professional orbital pipe saw from DWT ensures that cut surfaces fit together as precisely as possible to allow optimum results in the subsequent welding process. The orbital pipe saws feature a continuously variable electric drive (speed range 20–420 rpm) and torque ranging from 120 to 330 Nm. The standard rotary crank improves cutting quality and extends saw blade life.

Key features

• Precision cutting for orbital welding preparation
• Optimal welding-ready surfaces
• Variable speed control (20–420 rpm)
• High torque range (120–330 Nm)
• Suitable for all materials and pipes up to 20.47" (520 mm)

Advantages

• Precision Cutting: Ensures pipe segments are cut perfectly to provide an optimal fit for orbital welding.
• Optimal Welding Results: Precise cuts guarantee superior subsequent orbital welding quality.
• Variable Speed Control: Continuously adjustable electric drive for fine speed tuning (20–420 rpm).
• Powerful Performance: High torque values to handle demanding cutting tasks (120–330 Nm).
• Superior Cutting Accuracy: Perpendicular cutting precision deviates less than 0.25 mm from target measurement.
• Included Rotary Crank: Improves cutting quality and prolongs saw blade life.

Product overview
Part No. RG350556 — Orbital pipe saw 130 — Working range: 0.2 - 5.1" (5 - 130 mm) — Power supply: 230 V
Part No. RG350557 — Orbital pipe saw 230 — Working range: 2.4 - 9.06" (60 - 230 mm) — Power supply: 230 V
Part No. RG350539 — Orbital pipe saw 130 — Working range: 0.2 - 5.1" (5 - 130 mm) — Power supply: 115 V
Part No. RG350558 — Orbital pipe saw 230 — Working range: 2.4 - 9.06" (60 - 230 mm) — Power supply: 115 V
Part No. (not specified) — Orbital pipe saw 520 — Working range: 5.5 - 20.47" (139.7 - 520 mm) — Power supply: 230 V / 115 V

Matching accessories / tooling
HSSE saw blades suitable for all orbital pipe saws. (Saw blades available as matching tooling for optimal performance.)

Specifications / Technical data

• Model series: Orbital Pipe Saw (130 / 230 / 520)
• Cutting precision (perpendicular cuts): < 0.25 mm
• Blade jaw distance: 2 / 13.5 mm
• Drive: Electric
• Cutting materials: All
• Weight (Orbital Pipe Saw 130): 49 kg
• Weight (Orbital Pipe Saw 230): 56 kg
• Weight (Orbital Pipe Saw 520): 195 kg
• Motor capacity (Orbital Pipe Saw 130): 0.13 kW
• Motor capacity (Orbital Pipe Saw 230): 0.40 kW
• Motor capacity (Orbital Pipe Saw 520): 1.30 kW
• Speed range: 20 - 420 rpm
• Torque range: 120 - 330 Nm
• Working ranges: 5 - 130 mm (0.2 - 5.1"), 60 - 230 mm (2.4 - 9.06"), 139.7 - 520 mm (5.5 - 20.47")
