Pipe cart RG350247

transporthandlingmetal

Product overview

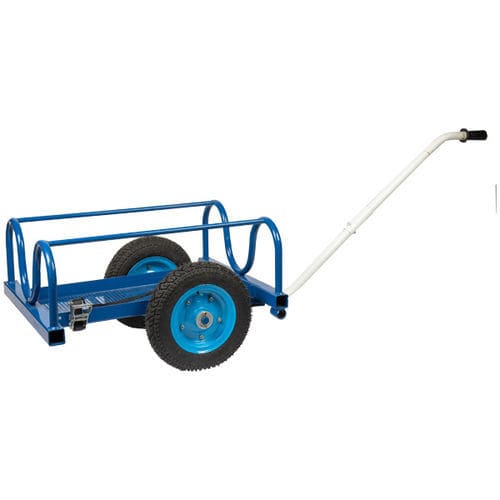

The CRICKET pipe cart is designed for safe and efficient transport of pipes on construction sites and industrial locations. It supports a maximum load of 450 kg and pipes up to 6.1 m in length. Weighing 36 kg (70 lbs), the cart uses lever action to reduce operator effort and is supplied with a ratchet lashing strap and runflat tyres with roller bearings for easy handling.

Features

• Max. load: 450 kg
• Max. pipe length: 6.1 m
• Max. pipe diameter: 300 mm
• Weight: 36 kg (70 lbs)
• Tyres with roller bearings for easy transport
• Runflat tyres for puncture resistance
• Delivered with ratchet lashing strap

Operation

• Step 1: Secure the pipe to the upturned cart using the ratchet strap.
• Step 2: Turn the cart and pipe over using the side handle.
• Step 3: Reposition the handle and move the cart to transport the pipe.

Technical details
Item number: 1350247
Type: Pipe cart
Max. load: 450 kg
Max. pipe length: 6.1 m
Max. pipe diameter: 300 mm
Weight: 36 kg (70 lbs)

Characteristics / technical specifications

• Compact removable handle for compact delivery
• Also suitable for transporting flanges, fittings and valves
• Designed for construction site use
• Tyres with roller bearings
• Runflat tyres
