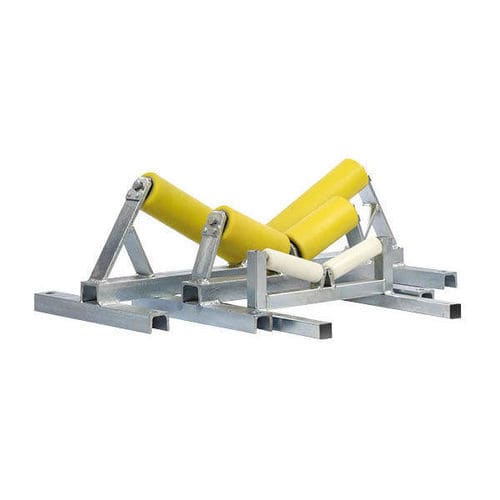

Roll support

for pipes

Product description
Pipe transport rollers and pipe supports provide precise, secure handling of pipes in workshops, construction sites and pipe-processing facilities. Galvanized thick-walled rollers and durable plastic rollers are available to suit light and heavy pipes. Lightweight, portable designs facilitate handling in confined areas. Fixation options include drilled fixings and ground pegs for stable positioning on site.

Key features

• Load capacity up to 1,000 kg
• Galvanized thick-walled rollers for heavy-duty applications
• Durable plastic rollers for gentle support of smaller pipes
• High-quality ball bearings with dust and dirt protection
• Portable, compact construction for workshop and site use
• Fixation options: drilled holes and ground peg anchors
• Suitable for pipe diameters from 50 mm to 900 mm depending on variant

Product variants / Overview
Part No. 1350734 — Pipe Transport Roller 315/200 — For pipe sizes: up to 315 mm OD — Dimensions (L x W x H): 410 x 400 x 140 mm — Load capacity: 200 kg — Weight: 3 kg
Part No. 1350737 — Pipe Transport Roller 650/1000 — For pipe sizes: up to 650 mm OD — Dimensions (L x W x H): 400 x 520 x 240 mm — Load capacity: 1000 kg — Weight: 14.6 kg
Part No. 1350738 — Pipe Transport Roller 900/1000 — For pipe sizes: up to 900 mm OD — Dimensions (L x W x H): 900 x 400 x 300 mm — Load capacity: 1000 kg — Weight: 23 kg
Part No. 1351728 — Single Pipe Support — For pipe sizes: 50 - 1000 mm OD — Dimensions (L x W x H): 293 x 211 x 127 mm — Load capacity: 65 kg — Weight: 1.2 kg
Part No. 1351727 — Double Pipe Support — For pipe sizes: 50 - 1000 mm OD — Dimensions (L x W x H): 296 x 392 x 127 mm — Load capacity: 130 kg — Weight: 2.3 kg

Technical specifications

• Roller materials: galvanized steel (thick-walled) and durable plastic variants available
• Bearings: high-quality ball bearings with dust and dirt protection
• Fixation: drilled fixings and ground peg fixations for secure anchoring
• Load capacity range: 65 kg to 1,000 kg depending on variant
• Supported pipe diameters: 50 mm OD up to 900 mm OD depending on variant
• Designed for portability and easy handling in workshops and construction sites
