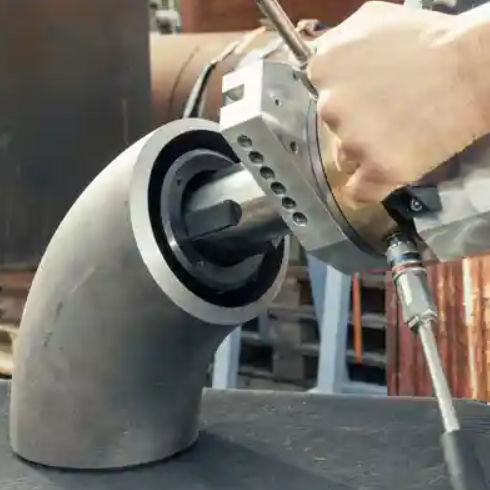

Elbow chamfering machine TE series

for weld seam preparationfor pipesfor thick pieces

Working range: Up to max. 18" OD Simple & quick set up Ergonomic Made in Germany The device attachment for beveling pipe bends is an accessory for our beveling machines and is used exclusively for beveling and internal beveling of pipe bends as part of a repair or production. Due to the design of this device, pipe diameters, pipe wall thicknesses and pipe material must be taken into account. Liners hold the machine in place while fitting the elbow to the pipe. Dimension scale on the liners make centering easy. With the standard liners it is possible to install the mandrel close to the pipe end. With the help of additional liner extension bits mandrel can be installed deeper for beveling the inside diameter of the pipe. These elbow mandrel works according to the same basic principle; Mandrel is clamped to a pipe elbow via screws on the inner diameter of the mandrel housing. Each extendable leg can be adjusted individually so centering is easily done. Legs have freely rotating heads to protect the inner surface of the pipe from damage when tightening the legs. Suitable for our pipe beveling machines and exclusively used for beveling or internal bevelling of pipe elbows for production or repairs. everything you need in one case Liners for easy setup, liner extension bits for deeper setup, required hand tools for installation
