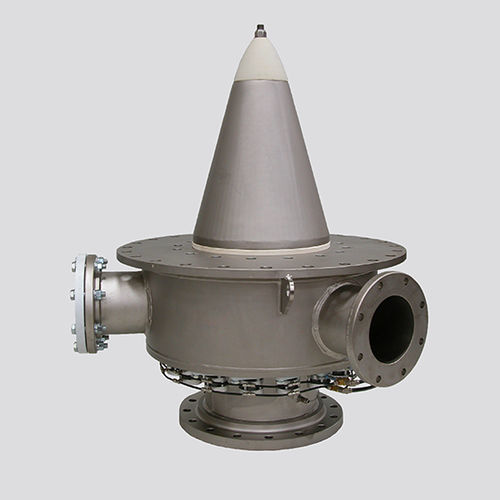

Fragile product batch blender Blendcon™

for abrasive fluidspowdercontinuous

Overview
The Blendcon™ Batch Blender is designed for discrete batch processing of dry bulk powders where the vessel must fully discharge after blending. It is suitable for blend formulations requiring lot tracking, handling of abrasive or fragile materials, and flexible batch sizes.

Performance and capacity
Available in four models to cover batch volumes from approximately 5 ft³ to 4000 ft³. Blend times depend on material properties and model selection; for example, a 300 ft³ batch can be blended in ~4 minutes while a 4000 ft³ batch can be blended in ~30 minutes under typical conditions.

How it works
Blending is achieved by pulsing compressed air or inert gas upward in a circular pattern to lift, turn and tumble the material. Rapid expansion of the gas produces high kinetic energy that promotes thorough mixing with a low number of pulses. The cone discharge valve reduces dead zones and minimizes segregation during discharge. No internal mixer arms or blades are used, reducing wear and clogging when processing abrasive or fragile powders.

Cleanout and maintenance
Smooth interior vessel surfaces minimize product buildup. The absence of internal shafts, blades or piping reduces entrapment points and simplifies cleanout between batches, supporting faster product changeover and lower maintenance effort.

Control
Blending intensity and action are controlled via adjustable pulse duration, pulse frequency, air pressure and air volume. These variables are configurable to optimize blending for specific bulk materials and process requirements.

Options

• 304 or 316 stainless steel construction
• Continuous blending configuration (optional)

Features

• Fast, gentle homogeneous blending
• Improved blend vessel cleanout
• Anti-segregation cone discharge valve
• Adjustable blending control (pulse duration/frequency, pressure, volume)
• Suitable for abrasive or fragile dry bulk powders
• Low shear, low energy consumption
• Process gas: compressed air or inert gas (N2)
• No internal mixer arms or blades

Technical specifications

• Temperature range: Min -20°F (-29°C); Max 150°F (66°C)
• Maximum operating pressure: 125 PSIG (8.62 barg)
• Batch size range: ~5 ft³ to ~4000 ft³ (four models available)
• Example blend times: 300 ft³ in ~4 minutes; 4000 ft³ in ~30 minutes (dependent on bulk material and model)
• Blending method: Pulsed compressed air or inert gas delivered in an upward circular pattern
• Discharge: Cone valve design to reduce dead spots and segregation; vessel fully discharges after blending
• Construction options: 304 or 316 stainless steel
• Control variables: Pulse duration, pulse frequency, air pressure and air volume (fully adjustable)
• Suitable materials: Dry bulk powders, including abrasive or fragile materials
• No internal mixer arms or blades (reduced wear and clogging)
• Low shear and low energy consumption
