Dilute phase pneumatic conveying system LDV 2000

aspirationpowder

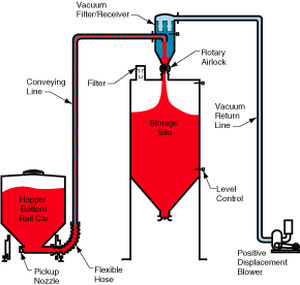

The LDV 2000 Vacuum Concept Conveying System is an ideal device for shorter distances. It is a dilute phase, high velocity, low pressure, continuous vacuum conveying system and is used to convey low to medium density as well as non-abrasive materials such as - flour, kaolin clay, plastic pellets, grain, malt, corn, starch and plastic resin. It is capable of conveying velocities in excess of 4000 feet per minute (20m/Sec) as well as a vacuum conveying pressure of up to 15 inches (381 mm) of mercury (Hg). A low pressure positive displacement blower is used to feed the materials into the conveying line on a continuous basis by vacuum. The system is comprised of a vacuum pickup nozzle, vacuum conveying line, vacuum filter receiver, rotary airlock feeder as well as a positive displacement blower.
