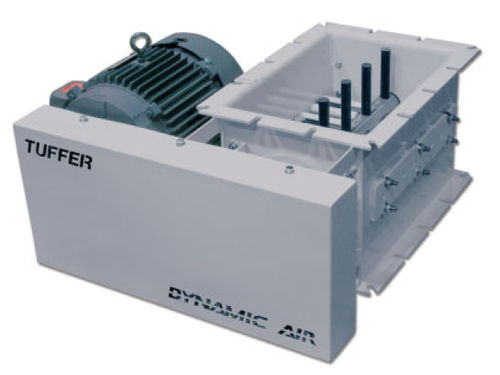

Grain lump breaker Tuffer™ 697 series

double-rollerhorizontal

Reduces lumps for improved material handling The Tuffer aerator/lump breaker effectively reduces moist, semi-moist, or dry solids down to near grain size. The fast moving breaker bars help to reduce lumps with ease and aerate the material. The result is a more consistent particle size and a fluffier bulk solid. Material will gravity feed and flow easier, improving overall handling efficiency. Simple design eliminates high friction The Tuffer aerator/lump breaker consists of an independently driven shaft powered by a v-belt drive system. The shaft has a number of heavy duty breaker bars mounted close together to control the particle size desired. This simple free-wheeling design eliminates high friction forces, lowering horsepower requirements and the need for complex parts and synchronization. For even finer particle breakdown, a perforated screen deck can be added just below the rotating breaker bars to limit the particle size and to prevent any larger than desired lumps from passing through. The Tuffer aerator/lump breaker is available in various sizes and capacities to suit most process requirements. The low profile design permits installation in new and existing systems. Features Abrasion resistant breaker bars Rugged construction V-belt drive Low profile design Self cleaning Low cost Fixed shear bars Single or double shafts depending upon size Adjustable packing gland seal for high temperature material
