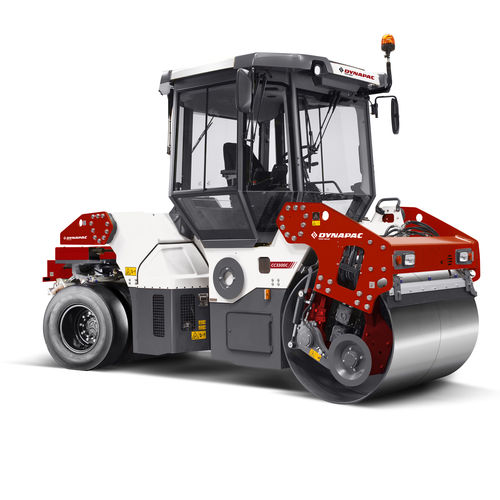

Combination road roller CC3300C

vibrating

Module mass (front/rear) - 4300 kg/ 3600 kg Traction Speed range (Dual/TC/AS) - 0-12 km/h Vertical oscillation - ±7 Max. theoretical gradeability - 43 % Compaction Wheel load - 900 (kg/wheel) Centrifugal force (high/low amplitude) - 82/ 72 kN Nominal amplitude (high/low) - 0.50/ 0.20 mm Static linear load - 25.0 kg/cm Vibration frequency (high/low amplitude) - 48/ 67 Hz Water tank - 750 l Emulsion tank - 78 l Split drums - Yes Engine Manufacturer/Model - Deutz TCD 3.6 HT T4f Type - Water cooled turbo Diesel Fuel tank capacity - 130 l Alternative Engine Manufacturer/Model - Cummins QSB 3.8 IIIA/T3 Type - Water cooled turbo Diesel Alternative Engine Manufacturer/Model - Deutz TCD 3.6 HT StageV Type - Water cooled turbo Diesel Hydraulic system Driving - Axial piston pump with variable displacement. Axial piston motors (4) with variable displacement. Vibration - Axial piston pump with variable displacement. Axial piston motor with constant displacement. Steering - Gear pump with constant displacem. Service brake - Hydrostatic in forward and reverse lever. Parking/ Emergency brake - Failsafe multidisc brake in both drums.
