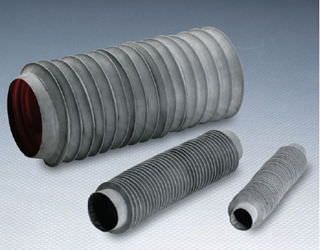

Round protective bellows Gortflex® CT series

rubbercoated fabricmolded

Gortiflex convoluted bellows tubing can be used as covers for screws, rods, ball splines. They can also be applied as flexible connections where vibration, movement or misalignment is involved. There are two styles available: CT, CTH. See tab below for sizes and comparison. • For light- to medium-duty environments (oil, dirt, chips and other abrasives) • Chemical and UV resistance • Operating temperature range: -30° F to 260° F* • Available in 13 stock sizes, from 1 to 10 inch I.D. and 24″ extended lengths • CT units are made from 0.030″ thick (+/- 0.010″) elastomer reinforced with outer nylon stocking • Ends consist of a 1″ long collar on each end for mounting with optional clamps (collars can be removed to provide flanges) • Easy mounting with clamps, stocked in all sizes (clamp band width is ½ inch) • For light-duty environments (oil and dust) • Chemical and UV resistance • Operating temperature range: -30° F to 260° F* • Available in 6 stock sizes from 0.75 to 2 inch I.D. and extended lengths of 12″ or 24″ • CTH units are made from 0.030″ thick Goralon elastomer • Inside flanges on both ends of the bellows accept a snap-in collar to achieve the desired connecting I.D. Snap-in collars are black polyurethane, ¾ inch long, available in a variety of sizes • Easy mounting with clamps, stocked in all sizes (clamp band width is ½ inch)
