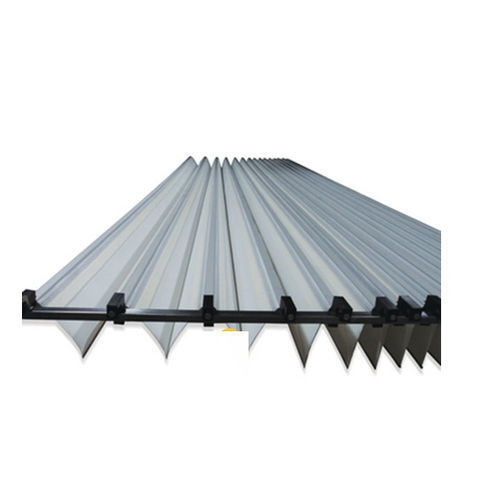

Coated fabric machine roof cover

aluminumfor machining centerscustom

Dust & Particles, Reduce Noise Machine roof covers consists of large, self-supporting bellows equipped to glide on a rail system. Roof covers were first developed for large CNC gantry machines, but have been adapted to other applications requiring a moveable, low-friction cover. The bellows folds are constructed from translucent, high-strength material and attached to lightweight support beams with low-friction guide blocks and precision bearings. The Purpose of Machine Roof Covers Do your production processes generate dust or small particles? If your machine has excessive dust or noise from machining of carbon fiber, wood & other materials, Dynatect can produce a large-scale machine roof cover bellows, designed to glide smoothly on existing rails, helps to reduce noise and traps dust. Key Features: Capable of over 1G acceleration; 60 meter/minute velocity Capable of over 10:1 extended-to-retracted length ratio Translucent covers protect environment from dust and provide noise attenuation Large self-supporting span with minimal deflection up to 30 ft. (9.144 m) Configurable to almost any rail or way system Individually replaceable folding section Choice of standard or inverted fold direction Roof Cover Design: Material – translucent bellows using polyurethane TPE with high-strength monofilament polyester Support structure – lightweight aluminum with low-friction plastic guide blocks and precision bearing rollers to minimize energy consumption Cover Construction – variable fold depth and folding direction (standard or inverted) provides necessary clearances Mounting– optional Dynatect-supplied mounting rails
