single-axis accelerometer / piezoelectric / IEPE / submersible
3006A

{{requestButtons}}

Characteristics

  • Number of axes:

    single-axis

  • Technology:

    piezoelectric, IEPE

  • Other characteristics:

    submersible

  • Acceleration range:

    490 m/s² (1,608 ft/s²)

  • Frequency:

    Min.: 0.32 Hz

    Max.: 5,000 Hz

Description

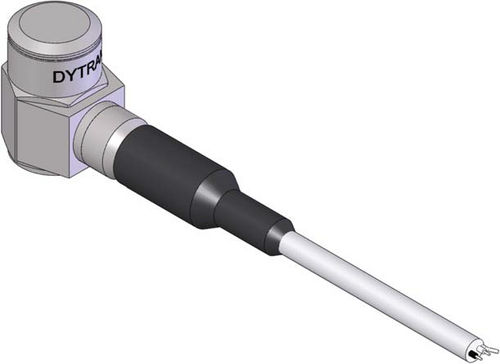

Dytran's 3006A is a moisture-resistant single axis IEPE accelerometer integrated with an overall 12 grams in weight. The tool is equipped with a 10-foot integral cable, with a splash-proof boot at the point of sensor and cable connection. The units are tightly sealed, designed for reliable operation in highly humid and dirty environments. In addition, the 3006A accelerometer can be used in many applications, such as short-term immersion, structural monitoring and vibration testing in damp environments.
