triaxial accelerometer / piezoelectric / IEPE / miniature
3225F1

{{requestButtons}}

Characteristics

  • Number of axes:

    triaxial

  • Technology:

    piezoelectric, IEPE

  • Other characteristics:

    miniature, ultraminiature

  • Acceleration range:

    4,903 m/s² (16,086 ft/s²)

  • Frequency:

    Max.: 10,000 Hz

    Min.: 1.6 Hz

Description

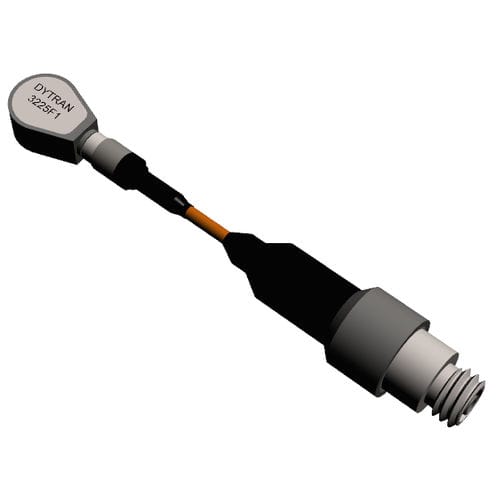

Dytran's model 3225F1 is a miniature accelerometer suitable for use in general-purpose vibration measuring in limited spaces. It is also designed to operate in a high-humidity, and dirty environment due to its airtight sealing.

The device features a low profile design, and a sensitivity of 10 mV/g for adhesive mounting in specific areas. The device has a height of 0.15", and a weight of 0.6 g. It uses a 3-56 coaxial connector combined with a 3 ft replaceable coaxial cable, and terminates to a 10-32 jack.
