Spring-energized seal

thermoplasticfluoropolymerPTFE

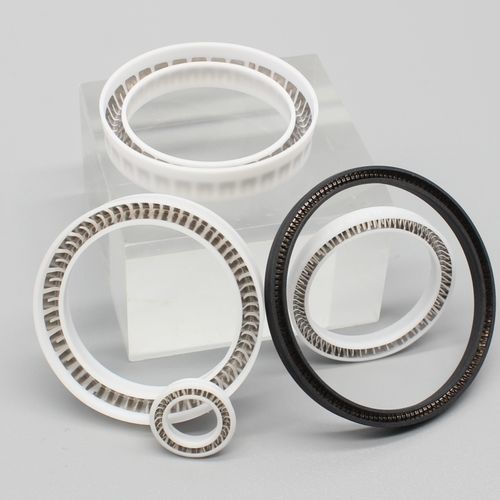

The spring-energized seal is a high-performance sealing solution consisting of a specially engineered PTFE-based sealing jacket combined with a metallic energizing spring. Under system pressure and spring force, the sealing lip is pushed into contact with the mating surface, generating a reliable sealing interface.

This design allows the seal to maintain consistent contact force even under conditions such as pressure variation, wear, thermal expansion, and slight misalignment of the hardware. As a result, stable sealing performance can be maintained throughout the service life of the component.

A spring-energized seal functions as a dynamic barrier for fluids and gases in demanding environments. It relies on controlled interference between the sealing lip and the mating hardware, where both material properties and structural design contribute to sealing efficiency and wear resistance.

Compared with conventional elastomer or standard polymer seals, spring-energized PTFE seals can offer extended service life, particularly in applications involving aggressive media, high temperature, low friction requirements, or long-term dynamic motion. The constant energizing force helps reduce leakage paths and compensates for gradual wear of the sealing lip, improving long-term reliability and equipment uptime.

The sealing system typically consists of two key elements: a PTFE-based seal jacket and a metallic energizer. Dytron can produce sealing jackets using virgin or filled PTFE materials, including carbon-filled, graphite-filled, or other modified PTFE compounds, depending on application requirements such as wear resistance, creep performance, chemical compatibility, and friction behavior.

These engineered PTFE materials can be machined to tight tolerances and are suitable for precision sealing applications in automotive, fluid control, and industrial systems. Filled PTFE grades are generally preferred in more demanding conditions where improved mechanical strength, wear resistance, and dimensional stability are required.
