Medical camera module e-CAM131_CUMI1335_MOD

educationfor access controlVGA

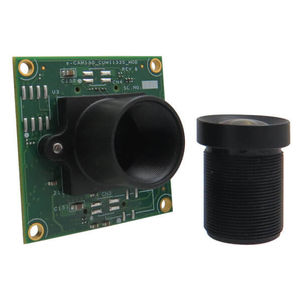

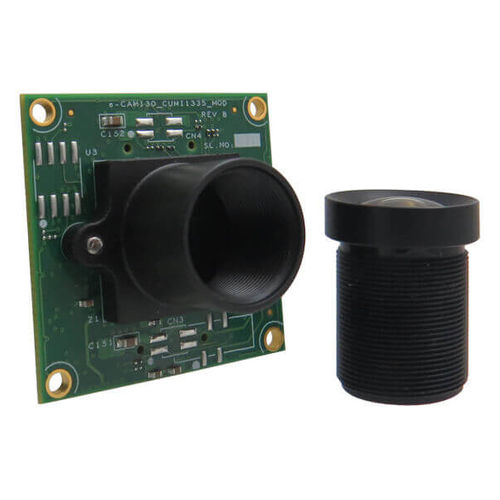

e-CAM131_CUMI1335_MOD is a high performance, 13 MP 4K camera module with S-Mount lens holder and it has better low light performance. This small form factor 4K camera module is based on 1/3.2” AR1335 CMOS image sensor from ON Semiconductor® and has a dedicated, high-performance Image Signal Processor (ISP) that performs the entire Auto functions like auto white balance, auto exposure control in addition to complete image signal processing pipeline that provides best-in-class images and video and the optional MJPEG compression. > 13MP Colour caméra with 4-lane MIPICSI-2 interface > - 1/3.2" Optical Form-factor > - Uncompressed UYVY streaming & Compressée! MJPEG streaming > - S-mount interchangeable lens holder for flexibility to choose a lens as per application requirements > - External Trigger input > - Face détection capability > - Maximum Image Transfer Rate : Uncompressed UYVY Output Format > - Power consumption of Caméra Module Board : 1.1OW (Approx) > - Température Range > - Operation - -30° to 70® C > - Stable Image - 0° to 50° C > - Small form-factor pluggable caméra module with S-mount lens holder > - 30mm x 30mm size > - Board Weight: 6 Grams > - 2x 20-pin SMT Connectors on two sides of the caméra module for better mechanical stability > - RoHS Compilant
