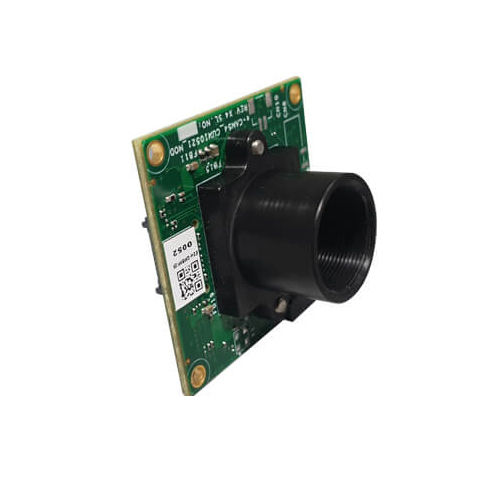

e-CAM55_CUMI0521_MOD is a small form factor, 5 MP fixed focus camera module based on AR0521 CMOS image sensor from ON Semiconductor® has a dedicated, high-performance Image Signal Processor chip (ISP) on-board that performs all the Auto functions (Auto White Balance, Auto Exposure control) in addition to complete image signal processing pipeline that provides best-in-class images and video. This low light camera module can stream uncompressed VGA (640 x 480) at 75 fps, HD (1280 x 720) at 100 fps, 1280 x 960 at 75 fps, FHD (1920 x 1080) at 65 fps, 2560 x 1440 at 38fps, 2592 x 1944 at 28 fps.
> 5MP Colour caméra with 2-lane/4-lane MIPI CSI-2 interface
> - 1/2.5" Optical Form-factor
> - Uncompressed UYVY streaming
> - S-mount interchangeable lens holder for flexibility to choose a lens as per application requirements
> - External Trigger input
> - Maximum Image Transfer Rate : Uncompressed UYVY Output Format
> - Power consumption of Caméra Module Board : 1.65W (Approx)
> - Température Range
> Operation - -30° to 70® C
> - Small form-factor pluggable caméra module with S-mount lens holder
> - 30mm x 30mm size
> - Board Weight: 6 Grams
> - 2x 20-pin SMT Connectors on two sides of the caméra module for better mechanical stability
> - RoHS Compilant
