GigE camera RouteCAM_CU22

digitalHDRmachine vision

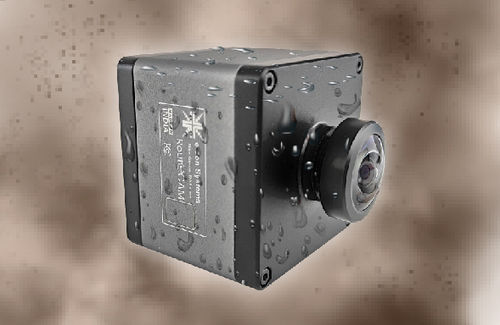

RouteCAM_CU22_IP67 is an IP67-rated HDR Power-over-Ethernet (PoE) camera featuring the Sony® STARVIS™ IMX662, a 1/2.8" CMOS image sensor. This camera can stream compressed 1080p video at 60 fps. It also adheres to IEEE 802.3af compliance and includes PTP synchronization support. RouteCAM_CU22 comes with the high-performance in-built ISP that helps in achieving excellent HDR performance even in ultra-low light environments. This PoE camera ensures reliable imaging even with cable lengths of up to 100m. Qualified for Road Vehicles Standards, this camera endures extreme temperatures, ensuring its durability and resilience for outdoor use in any environment with an IP67 rating while complying with industry regulations. This camera is compatible with the CloVis Central™, an easy-to-use and powerful cloud-based device management platform that manages entire on-field device operations, enabling faster time to market, reduced costs, and enhanced application success rates. Key features: Frame Rate: HD @ 60 fps & Full HD @ 60 fps Refer pdfDatasheet for complete frame rate details. Output format: Compressed MJPEG, H.265 and H.264 formats S-mount lens focused and glued at factory Shielded Cat6 M12 to RJ45 cable for transmission of both power and data for long distance Supports 10Base-T, 100Base-TX and 1000base-T modes Unique ID for each camera Lightweight, versatile, and portable design
