GigE camera RouteCAM_CU20

digitalHDRmachine vision

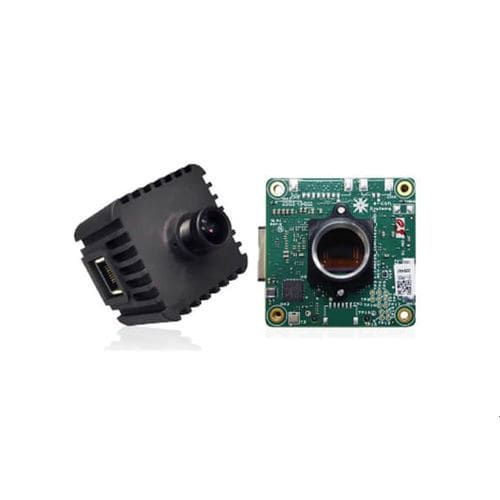

RouteCAM_CU20 is a 2MP GigE camera based on the 1/2.8" Sony STARVIS IMX462 sensor. The sensor comes with a pixel size of 2.9um and an active-pixel array of 1937(H) x 1097(V). This is an ONVIF-supported ethernet Gigabit camera that can reliably send images and control data over a wired LAN network. The camera comes with the HDR (High Dynamic Range) feature making it possible to deliver high-quality images in challenging lighting conditions. Superior low light and NIR sensitivity are two of its key differentiators. The GigE interface of this camera enables the transfer of video data with a maximum cable length of up to 100m. This GigE camera comes with an in-built ISP that ensures superior image quality leveraging the auto white balance and auto exposure functions. It also has an M12 lens holder that offers product developers the ability to choose the lens of their choice. Further, it can stream compressed Full HD data at 60 fps in the MJPEG, H.264, and H.265 formats. Key features: Frame Rate: Full HD @ 60 fps & VGA @ 60 fps Refer pdfDatasheet for complete frame rate details. Output format: Compressed MJPEG, H.264, H.265 Ethernet interface with RJ45 connector Shielded Cat5e or Cat6 ethernet cable for transmission of both power and data for long distance (up to 100m) Can stream up to 4 simultaneous streams Auto Exposure & Auto White Balance Motorised lens control * Unique ID for each camera Lightweight, versatile, and portable design
