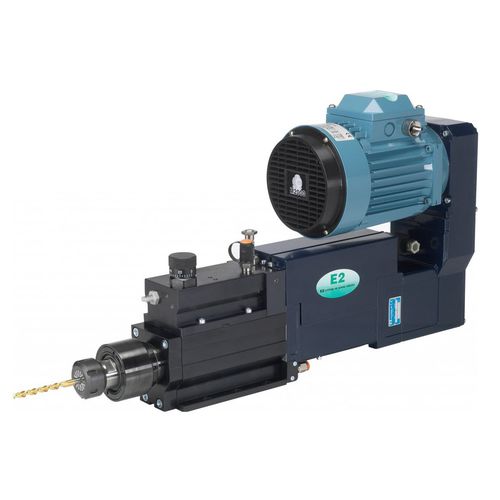

Electro-pneumatic drilling unit BE 48 serieselectrichydraulicsingle-spindle
Add to favorites
Compare this product
Characteristics
- Drive type
- electro-pneumatic, electric, hydraulic
- Other characteristics
- single-spindle, self-feed, multi-spindle
- Rotational speed
Max.: 8,600 rpm
(54,035.4 rad.min-1)Min.: 270 rpm
(1,696.5 rad.min-1)- Stroke
Max.: 100 mm
(3.94 in)Min.: 0 mm
(0 in)- Torque
Max.: 19.7 Nm
(14.53 ft.lb)Min.: 0.55 Nm
(0.41 ft.lb)
Description
The BE 48-series is a flexible electro-pneumatic series of units in a modular design. The electric motor powers the spindle, while the feed is pneumatic. With the hydraulic feed control you can adjust the speed for best performance. The option linear sensor makes it possible to include functions such as multi- wall drilling and automatic chip removal. The series is available with integrated ER32 chuck as well as with multi-spindle heads.
Compact yet flexible design
Hydraulic feed control for the whole stroke
Mechanical or sensor activated depth control
