Permanent beacon B100LDA

LEDDC230VAC

Product overview

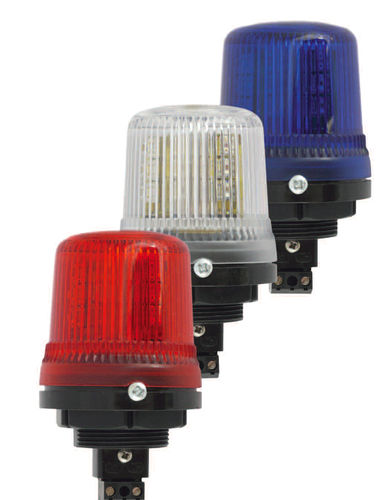

The B100LDA is the panel‑mount LED permanent beacon in the B100 family, designed for visual signaling in industrial control panels and equipment requiring a compact, IP65‑rated indicator.

Description
The panel mount base features a pluggable terminal block for quick installation and simplified maintenance. The unit is available with prismatic or plain lenses and multiple LED colour options for zone or process identification.

Features

• Bayonet fixing lens for secure attachment.
• Anti‑tamper locking screw.
• Stainless steel fixings for corrosion resistance.

Specification
Light source: 9 x high‑power LEDs
Lens / LED colours: Amber, Blue, Clear (White LED), Green, Red, Yellow
Lens type: Prismatic (standard) or plain
Mounting: Panel mount PG29
Peak / effective intensity cd: 5.5 cd* (measured ref. to I.E.S.)
Ingress protection: IP65
Housing material: High impact PC, UL94 V0 (f1)
Terminals: 0.5 to 1.5 mm² pluggable
Operating temperature: -25 to +50°C [-13 to +122°F]
Storage temperature: -40 to +70°C [-40 to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 93 g / 2.04 lbs
*Candela measurements representative of performance with clear lens at optimum voltage

Current consumption
10–30V dc: 80 mA
90–230V ac 50/60Hz: 32 mA

Part codes (example formats)
10–30V dc version: B100LDA030B/[y] (where [y] = lens colour code A, B, C, G, R, Y)
90–230V ac version: B100LDA230B/[y]
Colour code mapping: A = Amber, B = Blue, C = Clear (White), G = Green, R = Red, Y = Yellow

Approvals
GOST‑R certificate: POCC GB.JB05.H00144.

Technical characteristics / specifications

• Model: B100LDA
• Type: Panel‑mount LED permanent beacon
• Light source: 9 x high‑power LEDs
• Available colours: Amber, Blue, Clear (White), Green, Red, Yellow
• Lens type: Prismatic (standard) or plain
• Mounting: Panel mount PG29 with pluggable terminal block
• Intensity (peak/effective): 5.5 cd* (clear lens, optimum voltage)
• Ingress protection: IP65
• Housing: High impact PC, UL94 V0 (f1)
• Terminals: 0.5–1.5 mm² pluggable
• Operating temperature: -25 to +50°C
• Storage temperature: -40 to +70°C
• Relative humidity: 90% at 20°C
• Weight: 93 g
• Current: 10–30V dc = 80 mA; 90–230V ac = 32 mA
• Example part numbers: B100LDA030B/[y], B100LDA230B/[y]
