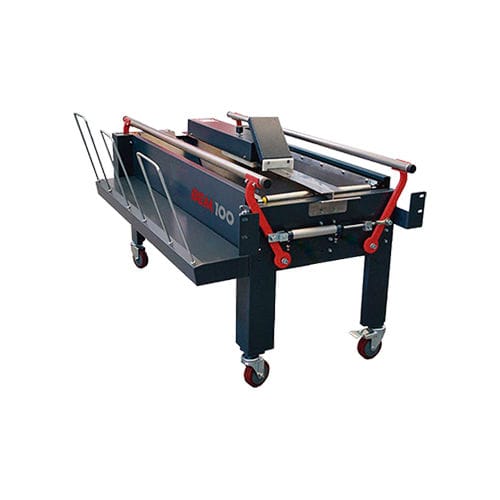

Semi-automatic cardboard box/case erector BEM100

pneumatic

The unfolded boxes are placed vertically guiding the lower flaps through a wedge system installed at the base of the machine. One placed in position by manual operation, the lower flaps are folded, holding the box for filling. Once the box is filled, a piston is activated by a button to push the box towards the machine for the subsequent closing. We recommends placing a case sealer afterwards. Standard machine Variable production depending on carton format Dimensional adjustment: Manual  Bottom flaps folding Air pressure: 6 bar. Carton boxes Type: RSC or B1 Lenght: 200 to 600 mm. Width: 185 to 480 mm. Height: 120 to ∞ mm Other dimensions on requests (can add an extra cost) Standard machine variations Stainless steel 304 option Possibility of “machine à la carte” with special dimensions Possibility of adapting to forming + sealing line.
