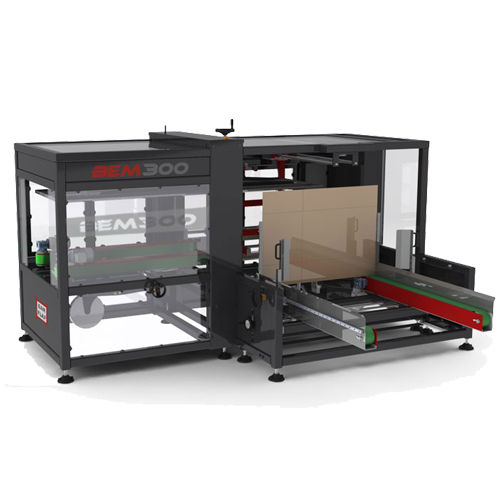

Automatic case former
The basic structure consists of a magazine for folded boxes, a system to open them, close the lower flaps and seal the bottom. Then deliver the box assembled with the bottom closed and ready to introduce products vertically.
The folded boxes located in the machine’s warehouse are taken by a vacuum suction cup system that opens them and places them in the forming position.
The boxes are transported through the machine for a quick sealed of the bottom flaps.
Standard machine
Variable production depending on carton format up to 6 boxes/min
Dimension adjustment: Manual
Bottom flaps folding
Air pressure: 6 bar.
PLC control system
Touch screen LCD
Bottom flaps closing with adhesive tape
Tape end detector with alarm
Electric power 220 V 50 Hz
Installed Power 0,5 Kw
Pneumatic installation: 6 bar.
Weight 400 Kg.
Carton boxes
Type: RSC, B1
Length: 350 to 790 mm. XL MODEL: 500 to 850 mm.
Width: 250 to 400 mm. XL MODEL: 200 to 650 mm.
Height: 225 to 600 mm. XL MODEL: 210 to 500 mm.
It is not possible to combine all ten maximum dimensions
Other dimensions on demand (it can add an extra cost)
Standard machine variations
Stainless steel 304
Bottom flaps closing with Hot Melt
Flaps opener for automatic filling
Automatic dimensional adjustment
Motorized horizontal cases magazine
Other colors on demand (it can add an extra cost)
