Rotary arm stretch wrapper 700

semi-automaticpalletstretch film

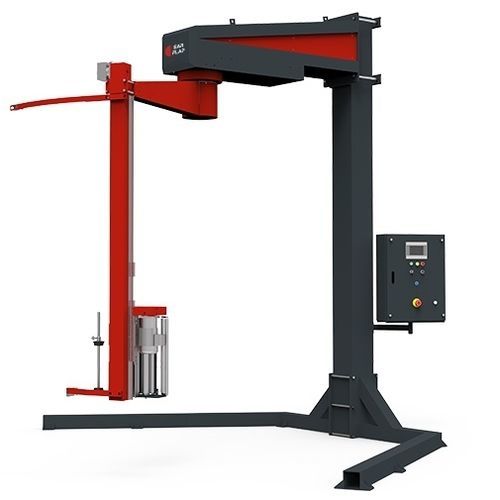

Semiautomatic pallet wrapper with rotary arm Semiautomatic wrapping machines. Detect the height of the pallet making an optimized wrapping process. At the end of the cycle, they require the presence of the operator to cut the film and remove the pallet. The pallet is introduced into the arm radius. The arm will start its turn at the selected speed according to the kind of wrap selected. At the end of the cycle the presence of an operator is required to cut the film and remove the pallet. Standard machine technical features Production up to 20 pallets/hour, depending on the operation and the characteristics of the load Powered film carriage on the rotary arm frequency inverter Powered pre-stretch 300% Automatic load height detection by photocell Soft start/stop with stop in position and SCHNEIDER frequency inverter 4 wrapping cycles: simple / double / double plus / complete  Wrapping cycles counter Top and bottom reinforcement wrap independently adjustable Controlled by SIEMENS PLC with LCD touch screen Ergonomic control panel Standard machine variations Black loads detection by ultrasounds Stainless steel 304 Explosive atmospheres ATEX Sub-zero temperatures down to -3ºC Special heights Different pre-stretch ratios 150%, 200%, 300% or 400% Safety fences and muting barriers Complete customization
