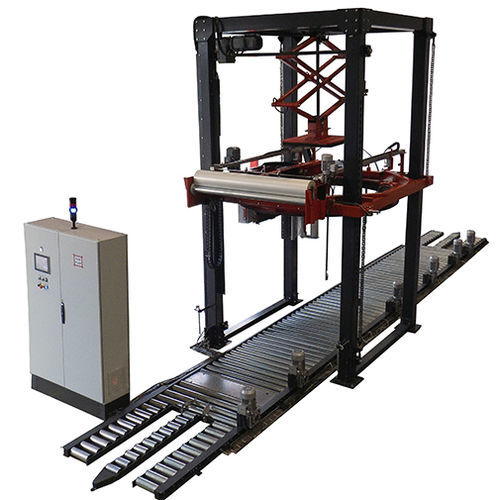

Rotary ring stretch wrapper RRM6500

automaticpalletwith motorized roller conveyor

Automatic rotary ring wrapper The pallet is introduced into the ring radius. The ring will start its rotation at the selected speed according to the kind of wrap selected.This model of wrappers does not need the presence of operators at the end of the cycle.In this model the input, positioning and output of the pallet is automatic, with the necessary interconnections with conveyors and other machines of the automated line. Powered pre-stretch carriage 300% with electronic settings Load height detection by photocell (Optional: detection by ultrasounds for black loads) Soft start with indexed stop and SCHNEIDER speed inverter 3ALL feature: clamping, cutting and dolly heat sealing Wrapping cycles counter Independently adjustable top and bottom reinforcement wraps Light and sound indicators for functioning signals and alarms Controlled by PLC SIEMENS Panel control with touch screen  Output: up to +- 90 pallets/hour (variable depending on the characteristics of the load, number of wraps etc.) 10 customizable programs, starting, upper and final wraps, overlapping lapse, roping, etc. Standard machine variations Roping system to reinforce the load with independently adjustable Main powered rollers conveyor 1.800 mm height safety fences with access door and anti-intrusion photocells for load infeed and outfeed with muting. Pallets lift table to wrap the load with the pallet
