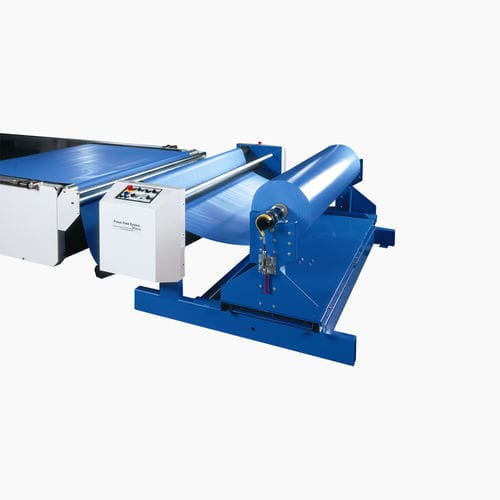

Fabric feeding unit

for cutting applicationsautomatic

The Power Feed System simplifies material feeding to the cutting system by automatically adjusting and maintaining consistent tension for any material type. An optional photo-electric edge control unit ensures precise alignment of each ply. Available in one-roll, two-roll, three-roll, six-roll with cart, or flat fold configurations, the Power Feed continuously supplies material for the length of marker or until the roll is consumed. • Automatic edge control included • Available in mirror image or standard configuration • Optional two-roll, heavy-duty version available (not shown) • See download attachment for more details Additional Information Width : 78 in. (2.0 m) 84 in. (2.1 m) 96 in. (2.4 m) 108 in. (2.7 m) Custom widths available in 6 inch width increments (15.2cm) please contact the factory for more information. Standard Weight Capacity : 1,500 lbs. (680 kg) Maximum Roll Diameter : 30 in. (76 cm) Power Requirements : 110V at 15 amps, 1 ph 220V at 8 amps, 1 ph
