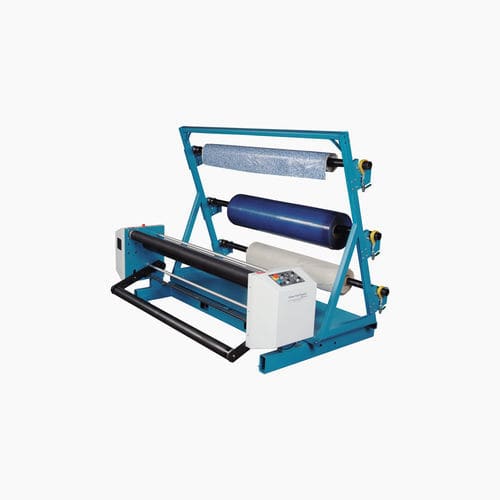

Cutting feeding unit

fabric rollautomatic

The Power Feed System simplifies material feeding to the cutting system by automatically adjusting and maintaining consistent tension for any material type. An optional photo-electric edge control unit ensures precise alignment of each ply. Available in one-roll, two-roll, three-roll, six-roll with cart, or flat fold configurations, the Power Feed continuously supplies material for the length of marker or until the roll is consumed. • Automatic edge control included • Available in mirror image or standard configuration Width : 78 in. (2.0 m) 84 in. (2.1 m) 96 in. (2.4 m) 108 in. (2.7 m) Custom widths available in 6 inch width increments (15.2cm) please contact the factory for more information. Standard Weight Capacity : 5,000 lbs. (2,268 kg) Weight Capacity Per Bar : 2500 lbs. (1,134 kg) Maximum Roll Diameter : 30 in. (76 cm) Power Requirements : 110V at 15 amps, 1 ph 220V at 8 amps, 1 ph
