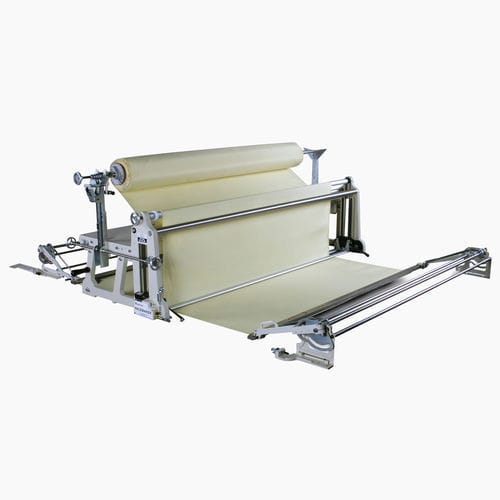

Manual spreading machine Pacemaker

for textiles

Eastman’s top-of-the-line manual spreader, the Pacemaker, can be utilized efficiently and with ease for face-up and face-to-face spreading. This lightweight, economical machine combines strength and reliability to increase the productivity of your spreading operations. The Pacemaker is equipped with end catchers, which automatically fold and clamp the fabric at each end of the spread. • Manual Edge Control • Ply Counter • Expandabar Optional Features • Automatic Infra-Red Edge Control • End Catchers • Quick-Cut Attachment for face-up spreading • Front or Double Uprights Piece Goods Bar • Frozen Bar Assembly (250 lb. max.) • Standard Expandabar (125 lb. max.) • Heavy Duty Expandabar (300 lb. max) Additional Information Roll Weight - Maximum : 125 lbs. (57kg) Roll Diameter - Maximum : 24 in. (61cm) Maximum Spread Height : 8.5 in. (22 cm) Electric Power Requirements : 110V at 7 amps 220V at 4 amps Machine Weight : 250 lbs. (113.4kg)
