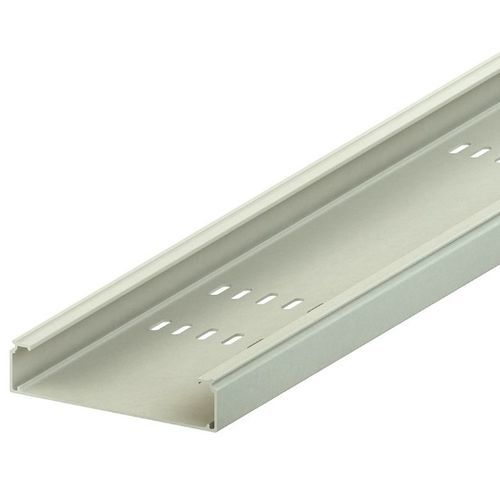

Glass fiber-reinforced polyester cable tray KPL series
pressedperforatedpultruded

Glass fiber-reinforced polyester cable tray - KPL series - Ebo Systems SAS - pressed / perforated / pultruded
Glass fiber-reinforced polyester cable tray - KPL series - Ebo Systems SAS - pressed / perforated / pultruded
Glass fiber-reinforced polyester cable tray - KPL series - Ebo Systems SAS - pressed / perforated / pultruded - image - 2
Glass fiber-reinforced polyester cable tray - KPL series - Ebo Systems SAS - pressed / perforated / pultruded - image - 3
Glass fiber-reinforced polyester cable tray - KPL series - Ebo Systems SAS - pressed / perforated / pultruded - image - 4
Glass fiber-reinforced polyester cable tray - KPL series - Ebo Systems SAS - pressed / perforated / pultruded - image - 5
Add to favorites
Compare this product
Go to the Ebo Systems SAS website for more information

Characteristics

Material
glass fiber-reinforced polyester
Other characteristics
pressed, perforated, pultruded
Width

60 mm, 100 mm, 150 mm, 200 mm, 300 mm
(2.36 in, 3.94 in, 5.91 in, 7.87 in, 11.81 in)

Height

40 mm, 50 mm, 80 mm
(1.57 in, 1.97 in, 3.15 in)

Length

3,000 mm, 6,000 mm
(118.11 in, 236.22 in)

Description

Description
GRP (glass-fibre reinforced polyester) cable tray, pultruded profile with unperforated side beams and perforated bottom, pressed finish, RAL 7032 (pebble grey). Standard lengths: 3 m and 6 m.

Dimensions available (table)
Product | EAN | Height (mm) | Width (mm) | Length (mm) | Product sheet
KPL 40.060 | 4013339952557 | 40 | 60 | 3000 | available
KPL 40.060/6 | 4013339952632 | 40 | 60 | 6000 | available
KPL 50.100 | 4013339952564 | 50 | 100 | 3000 | available
KPL 50.100/6 | 4013339952649 | 50 | 100 | 6000 | available
KPL 50.150 | 4013339952571 | 50 | 150 | 3000 | available
KPL 50.150/6 | 4013339952656 | 50 | 150 | 6000 | available
KPL 50.200 | 4013339952588 | 50 | 200 | 3000 | available
KPL 50.200/6 | 4013339952663 | 50 | 200 | 6000 | available
KPL 80.100 | 4013339952595 | 80 | 100 | 3000 | available
KPL 80.100/6 | 4013339952670 | 80 | 100 | 6000 | available
KPL 80.150 | 4013339952601 | 80 | 150 | 3000 | available
KPL 80.150/6 | 4013339952687 | 80 | 150 | 6000 | available
KPL 80.200 | 4013339952618 | 80 | 200 | 3000 | available
KPL 80.200/6 | 4013339952694 | 80 | 200 | 6000 | available
KPL 80.300 | 4013339952625 | 80 | 300 | 3000 | available
KPL 80.300/6 | 4013339952700 | 80 | 300 | 6000 | available

Characteristics / technical specifications
  • Material: GRP (Glass-fibre Reinforced Polyester)
  • Construction: pultruded profile
  • Side beams: unperforated side beams
  • Bottom: perforated bottom
  • Finishing: pressed
  • Colour: pebble grey
  • RAL: 7032
  • Standard lengths: 3 m and 6 m
  • Available product variants and EANs listed in the dimensions table above
