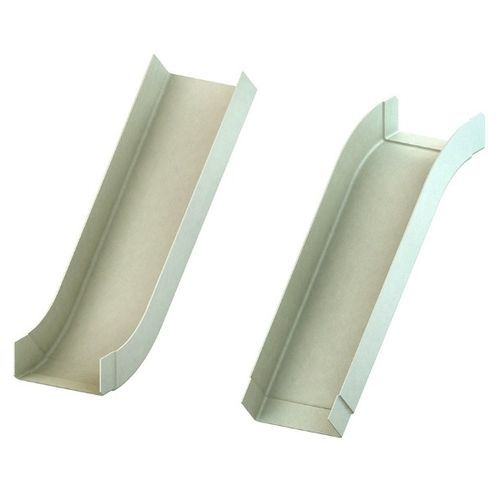

GRP cable tray connector KPET series

Short description
Two-part GRP elevation change element for cable tray system KP with unperforated side rails and moulded-on connector, pressed construction, pebble grey (RAL 7032).

Technical information
Material: GRP (Glass-fibre Reinforced Polyester)
Color: Pebble grey
RAL: 7032

Dimensions available

• KPET 50.100/P — EAN: 4013339954513 — Height: 50 mm — Width: 100 mm
• KPET 50.150/P — EAN: 4013339954520 — Height: 50 mm — Width: 150 mm
• KPET 50.200/P — EAN: 4013339954537 — Height: 50 mm — Width: 200 mm
• KPET 80.100/P — EAN: 4013339954544 — Height: 80 mm — Width: 100 mm
• KPET 80.150/P — EAN: 4013339967650 — Height: 80 mm — Width: 150 mm
• KPET 80.200/P — EAN: 4013339954551 — Height: 80 mm — Width: 200 mm
• KPET 80.300/P — EAN: 4013339954568 — Height: 80 mm — Width: 300 mm

Note
Refer to the product sheets for detailed information on product specifications and system compatibility.

Characteristics / technical specifications

• Product family / series: KPET (Elevation change for Cable tray system KP)
• Construction: 2-part GRP floor, pressed
• Material: Glass-fibre Reinforced Polyester (GRP)
• Side rails: unperforated
• Connector: moulded-on connector
• Finish / color: Pebble grey, RAL 7032
• Available heights: 50 mm, 80 mm
• Available widths: 100 mm, 150 mm, 200 mm, 300 mm
• Typical use: elevation change element for pultruded cable tray system KP
