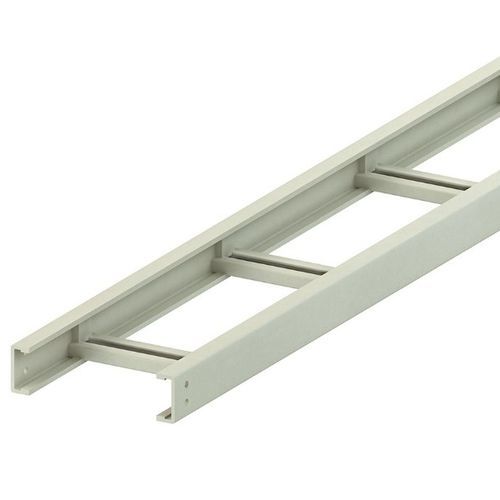

Glass fiber-reinforced polyester cable ladder UL series

pultrudedfiberglass

Description
GRP (Glass-fibre Reinforced Polyester) cable ladders from the UL series, pultruded with unperforated C-profile rungs open at the top. Standard lengths 3000 mm and 6000 mm. Finish: pressed surface in RAL 7032 (pebble grey). Designed for cable routing in industrial and utility installations where non-metallic ladder systems are required.

Basic data
Material: GRP (Glass-fibre Reinforced Polyester)
Color: Pebble grey
RAL: 7032
Rungs: Unperforated C-profile, open at top
Manufacturing: Pultruded
Standard lengths: 3000 mm and 6000 mm

Dimensions available (selected listing)
Product — EAN — Height (mm) — Width (mm) — Length (mm)
UL 53.150/3 — 4013339957958 — 53 — 150 — 3000
UL 53.150 — 4013339094622 — 53 — 150 — 6000
UL 53.200/3 — 4013339957972 — 53 — 200 — 3000
UL 53.200 — 4013339957965 — 53 — 200 — 6000
UL 53.300/3 — 4013339957996 — 53 — 300 — 3000
UL 53.300 — 4013339957989 — 53 — 300 — 6000
UL 53.400/3 — 4013339958016 — 53 — 400 — 3000
UL 53.400 — 4013339958009 — 53 — 400 — 6000
UL 53.500/3 — 4013339958030 — 53 — 500 — 3000
UL 53.500 — 4013339958023 — 53 — 500 — 6000
UL 53.600/3 — 4013339958054 — 53 — 600 — 3000
UL 53.600 — 4013339958047 — 53 — 600 — 6000
UL 80.150/3 — 4013339958078 — 80 — 150 — 3000
UL 80.150 — 4013339958061 — 80 — 150 — 6000
UL 80.200/3 — 4013339958092 — 80 — 200 — 3000
UL 80.200 — 4013339958085 — 80 — 200 — 6000
UL 80.300/3 — 4013339958115 — 80 — 300 — 3000
UL 80.300 — 4013339958108 — 80 — 300 — 6000
UL 80.400/3 — 4013339958139 — 80 — 400 — 3000
UL 80.400 — 4013339958122 — 80 — 400 — 6000
UL 80.500/3 — 4013339958153 — 80 — 500 — 3000
UL 80.500 — 4013339958146 — 80 — 500 — 6000
UL 80.600/3 — 4013339958177 — 80 — 600 — 3000
UL 80.600 — 4013339958160 — 80 — 600 — 6000
UL 100.150/3 — 4013339958191 — 100 — 150 — 3000
UL 100.150 — 4013339958184 — 100 — 150 — 6000
UL 100.200/3 — 4013339958214 — 100 — 200 — 3000
UL 100.200 — 4013339958207 — 100 — 200 — 6000
UL 100.300/3 — 4013339958238 — 100 — 300 — 3000
UL 100.300 — 4013339958221 — 100 — 300 — 6000
UL 100.400/3 — 4013339958252 — 100 — 400 — 3000
UL 100.400 — 4013339958245 — 100 — 400 — 6000
UL 100.450/3 — 4013339958276 — 100 — 450 — 3000
UL 100.450 — 4013339958269 — 100 — 450 — 6000
UL 100.500/3 — 4013339958290 — 100 — 500 — 3000
UL 100.500 — 4013339958283 — 100 — 500 — 6000
UL 100.600/3 — 4013339958313 — 100 — 600 — 3000
UL 100.600 — 4013339958306 — 100 — 600 — 6000
UL 100.700/3 — 4013339958337 — 100 — 700 — 3000
UL 100.700 — 4013339958320 — 100 — 700 — 6000
UL 100.750/3 — 4013339958351 — 100 — 750 — 3000
UL 100.750 — 4013339958344 — 100 — 750 — 6000
UL 100.800/3 — 4013339958375 — 100 — 800 — 3000
UL 100.800 — 4013339958368 — 100 — 800 — 6000
UL 100.900/3 — 4013339958399 — 100 — 900 — 3000
UL 100.900 — 4013339958382 — 100 — 900 — 6000
UL 150.150/3 — 4013339965168 — 150 — 150 — 3000
UL 150.150 — 4013339958405 — 150 — 150 — 6000
UL 150.200/3 — 4013339965175 — 150 — 200 — 3000
UL 150.200 — 4013339958412 — 150 — 200 — 6000
UL 150.300/3 — 4013339965182 — 150 — 300 — 3000
UL 150.300 — 4013339958429 — 150 — 300 — 6000
UL 150.400/3 — 4013339965199 — 150 — 400 — 3000
UL 150.400 — 4013339958436 — 150 — 400 — 6000
UL 150.450/3 — 4013339965205 — 150 — 450 — 3000
UL 150.450 — 4013339958443 — 150 — 450 — 6000
UL 150.500/3 — 4013339965212 — 150 — 500 — 3000
UL 150.500 — 4013339958450 — 150 — 500 — 6000
UL 150.600/3 — 4013339965229 — 150 — 600 — 3000
UL 150.600 — 4013339958467 — 150 — 600 — 6000
UL 150.700/3 — 4013339965236 — 150 — 700 — 3000
UL 150.700 — 4013339958474 — 150 — 700 — 6000
UL 150.750/3 — 4013339965243 — 150 — 750 — 3000
UL 150.750 — 4013339958481 — 150 — 750 — 6000
UL 150.800/3 — 4013339965250 — 150 — 800 — 3000
UL 150.800 — 4013339958498 — 150 — 800 — 6000
UL 150.900/3 — 4013339965267 — 150 — 900 — 3000
UL 150.900 — 4013339958504 — 150 — 900 — 6000

Technical characteristics / specifications

• Material: GRP (Glass-fibre Reinforced Polyester)
• Construction: Pultruded ladder with unperforated C-profile rungs open at the top
• Surface: Pressed
• Standard lengths: 3000 mm and 6000 mm
• Available heights (examples): 53 mm, 80 mm, 100 mm, 150 mm
• Available widths (examples): 150 mm up to 900 mm depending on model
• Colour / Finish: RAL 7032 (Pebble grey)
• Product family / series: UL series
• Product sheets and datasheets: available per model (see product listing)
