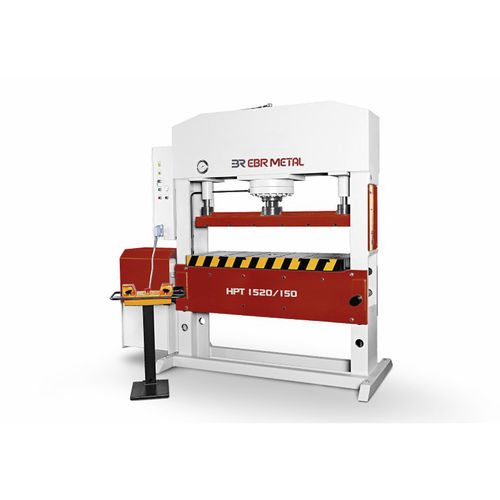

Hydraulic press HPT seriesforminguniversal
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming
- Other characteristics
- universal
- Force
100 tf, 150 tf
- Stroke
300 mm
(12 in)- Table width
500 mm, 600 mm
(20 in, 24 in)- Table length
1,020 mm, 1,520 mm
(40 in, 60 in)- Max. pressure
244 bar, 263 bar
(3,539 psi, 3,814 psi)- Working speed
5 mm/s
- Return speed
10 mm/s
- Approaching speed
8 mm/s, 9 mm/s
- Hydraulic pump power
7.5 kW, 11 kW
- Weight
1,985 kg, 2,400 kg, 2,500 kg, 3,100 kg
(4,376 lb, 5,291 lb, 5,512 lb, 6,834 lb)- Overall length
2,110 mm, 2,630 mm
(83 in, 104 in)- Overall width
1,000 mm
(39 in)- Overall height
2,350 mm, 2,450 mm
(93 in, 96 in)
Description
Universal hydraulic press for quality manufacturing. Suitable for small and medium size enterprise. more comfortable working with adjustable bottom table, adjustable pressure valve and stepless stroke adjustment. 100 or 150 ton press power. 300 mm stroke and 7.5 or 11 kw motor power.
T-slot top and bottom table
Steel construction welded frame
Two guide piston both side
Adjustable bottom table
Manometer
Adjustable pressure valve
Table up-down movement attachment
Stepless stroke adjustment
Two hand control
