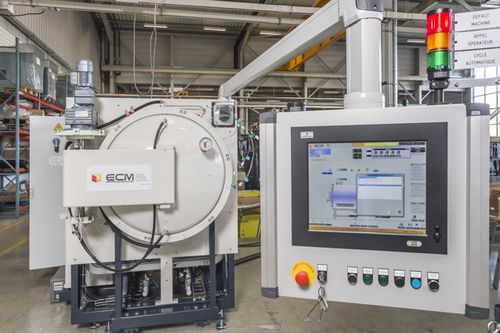

Chamber furnace FULGURA series
quenchingbrazingcarburizing

Chamber furnace - FULGURA series - ECM Technologies - quenching / brazing / carburizing
Chamber furnace - FULGURA series - ECM Technologies - quenching / brazing / carburizing
Chamber furnace - FULGURA series - ECM Technologies - quenching / brazing / carburizing - image - 2
Chamber furnace - FULGURA series - ECM Technologies - quenching / brazing / carburizing - image - 3
Chamber furnace - FULGURA series - ECM Technologies - quenching / brazing / carburizing - image - 4
Add to favorites
Compare this product

Characteristics

Configuration
chamber
Function
quenching, brazing, carburizing
Heat source
electric resistance
Atmosphere
vacuum, controlled atmosphere
Other characteristics
horizontal
Maximum temperature

Max.: 1,350 °C
(2,462 °F)

Min.: 0 °C
(32 °F)

Width

450 mm, 600 mm, 900 mm
(17.72 in, 23.62 in, 35.43 in)

Height

400 mm, 600 mm, 850 mm
(15.75 in, 23.62 in, 33.46 in)

Depth

600 mm, 900 mm, 1,200 mm
(23.62 in, 35.43 in, 47.24 in)

Description

Quenching furnaces from the Fulgura range are standards from the ECM range, integrating established technologies. This technological know-how ensures great performances. The display of heating elements (1 to several elements) produces low amplitude homogeneities. Nozzles located around the load guarantee rapid homogeneous cooling whatever the type of parts. POSSIBLE APPLICATIONS • - Quenching of tool steels • - Hyper quench of stainless steel • - Brazing • - Low pressure carburizing • - Tempering • - Nitriding • - Annealing • - Ageing • - Brazing • - Sintering

Catalogs

No catalogs are available for this product.

See all of ECM Technologies‘s catalogs
