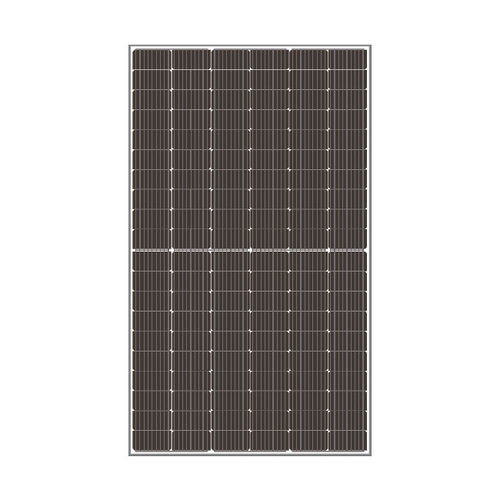

Monocrystalline silicon solar panel Helios Plus 120
ISOTUVCE

monocrystalline silicon solar panel
monocrystalline silicon solar panel
monocrystalline silicon solar panel
monocrystalline silicon solar panel
Add to favorites
Compare this product


Characteristics

Material
monocrystalline silicon
Certifications
ISO, TUV, CE, IEC
Other characteristics
black, PERC
Peak power (Wp)

Min.: 261 W

Max.: 375 W

Open-circuit voltage

Min.: 40.1 V

Max.: 41 V

Short circuit current

Min.: 9.1 A

Max.: 11.6 A

Max power voltage

Min.: 31.1 V

Max.: 34 V

Max power current

Min.: 8.4 A

Max.: 11 A

Module efficiency

Min.: 19.1 %

Max.: 20.5 %

Description

Founded in 2008, Eco Green Energy is a French brand solar PV manufacturer and distributing now its PV module in more than 60 countries over the world. Helios Plus series solar modules are made only with grade A cells for highest power generation, lowest LCOE, and ensured more than 25 years of lifespan. Solar Panels 9BB half-cut HELIOS PLUS 120 Cells, EGE-350-375W-120M (M6) Eco Green Energy’s modules are only made of grade A solar cells with very high efficiency and ensured more than 25 years of lifespan. Product warranty for 12 years. Solar Panels 9BB half-cut HELIOS PLUS 120 Cells Monocrystalline Reduce the temperature of the solar hot spot above 20 C and current intensity between each cell, increase the efficiency and power. Lower temperature coefficient than standard PV module (We can reach here -0,35%) Power warranty of 83.2% after 25 years (loss of 0,6% efficiency per year) Lower LCOE (Levelized Cost of Energy), we are able to have a more competitive price on 9BB than 5BB. Reduction of the risk of Micro-cracks Reducing the loss of current mismatch and resistance between the cells Junction box IP68 Our PV module Atlas PRO is suitable for utility-scale and solar farm project and have the following certification: TUV SUD (IEC 61730/ IEC 61215), Salt Mist (IEC 61701), Ammonia Corrosion (IEC 62716), Anti-PID, Sand and DUST (IEC 60068-2-68). Our PV modules are produced in our factory which is certified by ISO 9001 and comply with good Quality Management Systems.
