Digital signal conditioner DEEneo-ISC

4-20 mA

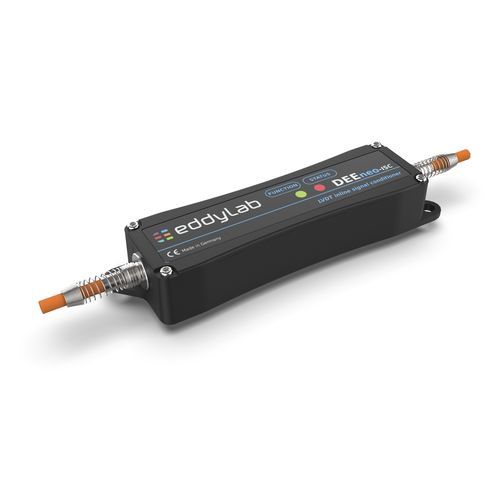

DEEneo-ISC Inline Signal Converter LVDT The DEEneo-ISC inline signal conditioner was developed for operating inductive LVDT sensors (full bridge) and is integrated into the sensor connection cable. The electronics supply the sensor and convert the sensor signal into a standardized, analogue output signal with the help of a microcontroller. DEEneo-ISC is designed for the operation of eddylab LVDT displacement transducers with fixed cable output or 4-pin M12 connector output. Operation of all commercially available LVDT sensors is also possible. The frequency and amplitude can be set using the eddySetup configuration software for optimum performance of the measuring chain. A pushbutton (SET button) is used for basic configuration and for setting the measuring range limits - this enables quick and easy adaptation to the customer‘s application.
