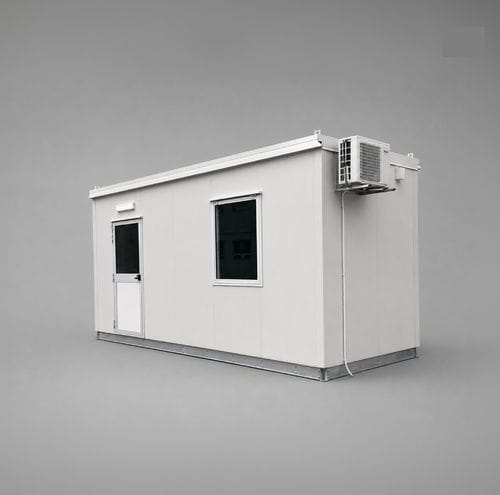

Logistic construction site cabin 501

officemedicalsanitary

Product overview

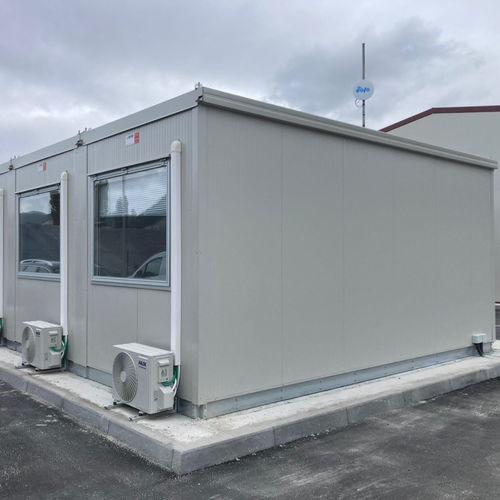

The modular accommodation and shelter module 501 was designed in 1996 as a replacement for tents. It is engineered for transport in standard 20' containers and for assembly on site in under 12 man-hours without mechanical equipment.

Use and evolution
Since its initial design the module has been continuously developed. Its production, transport and installation simplicity allow use across a wide range of applications: humanitarian emergencies, accommodation camps for mining and large construction projects, hospitals, hotels, chalets and other temporary or permanent needs in cold and hot climates. Configurations are available as single-, two- or three-storey units. Thousands of modules have been produced over 30 years with ongoing engineering improvements to support rapid deployment of turnkey large camps while meeting safety, comfort and reliability requirements.

Exemplary drawings
Series 501 modules can be supplied fully assembled and equipped with necessary fittings, cables and pipes, ready for connection to mains on site when required.

Available layouts / exemplary drawings
ACCOMMODATION

• IT-AC1 Single room with bathroom

OFFICES

• IT-OF1 Office 2 seats
• IT-OF2 Office 1 post with bathroom
• IT-OF3 Office 2 post with bathroom
• IT-OF4 2 offices from 1 station
• IT-OF5 Office 3 seats
• IT-OF6 Office 3 seats with bathroom

REFECTORY

• IT-RF1 Refectory of 11 seats
• IT-RF2 Refectory of 11/15 seats

TOILET

• IT-SI1 Toilet 2 cabins with dressing room
• IT-SI2 Bathroom for disabled personnel
• IT-SI3 Complex toilet 4 WC
• IT-SI4 Complex 4 showers
• IT-SI5 Complex 2 showers and 2 toilets
• IT-SI6 Complex 4 showers and 2 toilets
• IT-SI7 Complex 4 showers

LOCKER ROOMS

• IT-SP1 Dressing room 11 people
• IT-SP2 Dressing room 17/18 people

CHANGING ROOMS WITH HYGIENIC AREA

• IT-SS1 Changing room 7-8 people with toilet
• IT-SS2 Changing room 10/11 people with toilet

Characteristics / technical specifications

• Original design year: 1996
• Transportable in standard 20' containers
• Assembly time: under 12 man-hours (no mechanical equipment required)
• Configurations: single-, two- or three-storey layouts
• Applications: humanitarian emergencies, mining camps, large construction projects, hospitals, hotels, chalets and other temporary or permanent uses
• Climate suitability: suitable for cold and hot climates
• Delivery options: can be delivered fully assembled with fittings, cables and pipes, ready for onsite mains connection
• Production history: thousands of modules produced over 30 years with continuous engineering improvements
• Intended use: rapid deployment of turnkey large camps with emphasis on safety, comfort and reliability
