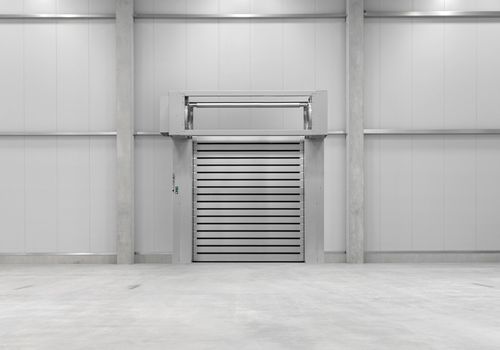

Spiral door EFA-SST® Secure

class 4indoorfor loading docks

Overview With the EFA-SST® Secure you provide maximum protection for people and assets without sacrificing the speed of a high-performance high-speed door. The spiral door integrates into the building envelope and delivers high opening and closing speeds to keep processes efficient while securing valuable goods. The Secure series addresses a wide range of security applications where burglary, robbery or vandalism resistance is required.

At a glance

• Resistance class RC 4 in accordance with DIN/TS 18194:2020 – RC 4
• Patented technology
• Tested and certified by ift Rosenheim
• Double-sided automatic locking at every closing cycle
• Emergency operation via pre-tensioned tension springs
• Opening speed up to 1.0 m/s
• Closing speed up to 0.6 m/s
• Up to 250,000 operating cycles per year
• Maximum clear opening sizes: width up to 4,000 mm, height up to 5,000 mm

Unassailable security Double-sided automatic locking mechanisms reliably secure the door at every closing operation, creating a nearly insurmountable barrier. Combined with an extremely robust construction and a drive based on reinforced hinge chains, the door is suited for sensitive zones and provides maximum protection against break‑in, robbery and vandalism.

Guaranteed longevity The average opening speed of the curtain is approximately 1.0 m/s and the closing speed approximately 0.6 m/s. The EFA-SST® Secure is designed for up to 250,000 load cycles per year and a service life of at least 10 years. It covers openings from pedestrian doors to truck entrances.

Manual emergency operation The door frames include special pre-tensioned springs for quick manual emergency operation. In case of emergency or power failure, the door can be opened within seconds to evacuate or provide access as required.

Certified resistance Certified by ift Rosenheim in accordance with DIN/TS 18194:2020 – RC 4, the door meets Resistance Class 4 (RC 4) for high-level protection against burglary, robbery and vandalism.

Technical specifications

• Model / Series: EFA-SST® Secure
• Resistance class: RC 4 (DIN/TS 18194:2020)
• Certification: Tested and certified by ift Rosenheim
• Locking: Double-sided automatic locking on every closing cycle
• Drive / construction: Reinforced hinge chains / robust spiral construction
• Opening speed: up to 1.0 m/s
• Closing speed: up to 0.6 m/s
• Operating cycles: up to 250,000 cycles per year
• Designed service life: at least 10 years
• Emergency operation: manual emergency opening via pre-tensioned tension springs
• Maximum clear opening sizes: width up to 4,000 mm, height up to 5,000 mm
• Typical applications: sensitive security zones, entrances from pedestrian door sizes to truck bays
